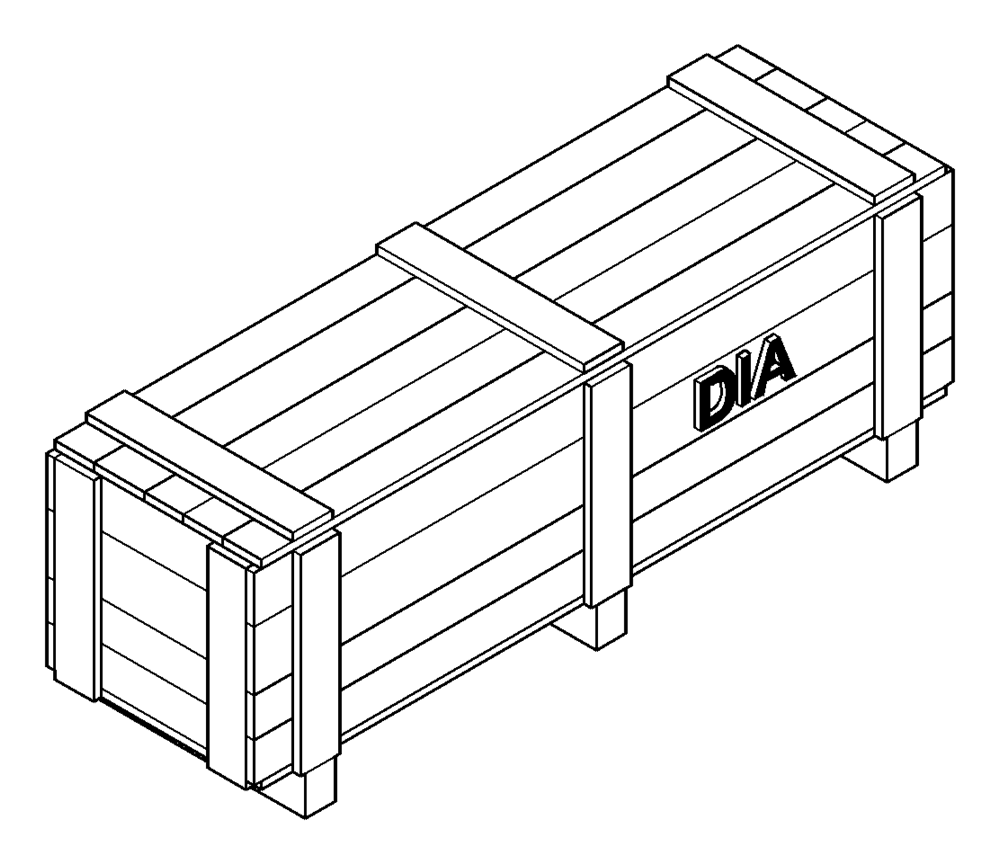

Запчасти Case IH SR240 (88.100.35[05]) - DIA KIT, HIGH FLOW AUX 36.6/20.4CC (88) - ACCESSORIES

1

47630772

High Flow Aux 36.6/20.4CC, Incl 2 - 50

KIT

1шт.

2

47630779

Sheet

INSTRUCTION

1шт.

3

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 48

1шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 48

1шт.

5

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 49

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 49

1шт.

7

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

9

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 50

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

13

47415664

12.7mm OD, Case Drain

HYD TUBE

1шт.

14

47415665

Case Drain

HYDRAULIC HOSE,10mm ID x 712mm L, SAE 100R1

1шт.

15

47419433

1631.98mm L, Aux High Flow, Loader Valve to Lift Arm

TUBE

1шт.

16

47419435

934.61mm L, Aux High Flow, Loader Valve to Lift Arm

TUBE

1шт.

17

47419437

1597.78mm L, Aux High Flow, Loader Valve to Lift Arm

TUBE

1шт.

18

47419439

991.21mm L, Aux High Flow, Loader Valve to Lift Arm

TUBE

1шт.

19

47447054

VALVE

High Flow CUP Manifold

1шт.

20

84186155

High Valve to Loader Valve

TUBE

1шт.

21

84251427

SWITCH

Rocker, High Flow

1шт.

22

84254045

CLAMP,66mm L

66mm L, Tube

4шт.

23

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 50

2шт.

24

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

25

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 50

1шт.

26

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 50

1шт.

27

84269151

FITTING

32mm ID, Gear Pump Suction

1шт.

28

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

29

84306937

COVER PLATE

Hydraulic

1шт.

30

84322579

1752.21mm L, High Flow Male

HYD TUBE

1шт.

31

84322581

High Flow Aux

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

32

84322582

1693.40mm L, High Flow Female

HYD TUBE

1шт.

33

84322584

High Flow Aux

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

34

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

1шт.

35

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

36

84373460

PLUG,23.8mm OD

23.8mm OD, Load Check

1шт.

37

84572270

PUMP,36.6 CC

1шт.

38

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

39

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 50

3шт.

40

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

41

87017999

SUPPORT

Hydraulic Tube

2шт.

42

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

43

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

44

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

45

225529A1

CLAMP,Dual, 25.4mm ID

Bar

2шт.

46

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

47

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

48

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

49

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

50

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

9шт.
