Запчасти Case IH SR240 (35.525.AA[12]) - AUXILIARY HYDRAULIC, HIGH FLOW, BOOM SECTION, BASIC (35) - HYDRAULIC SYSTEMS

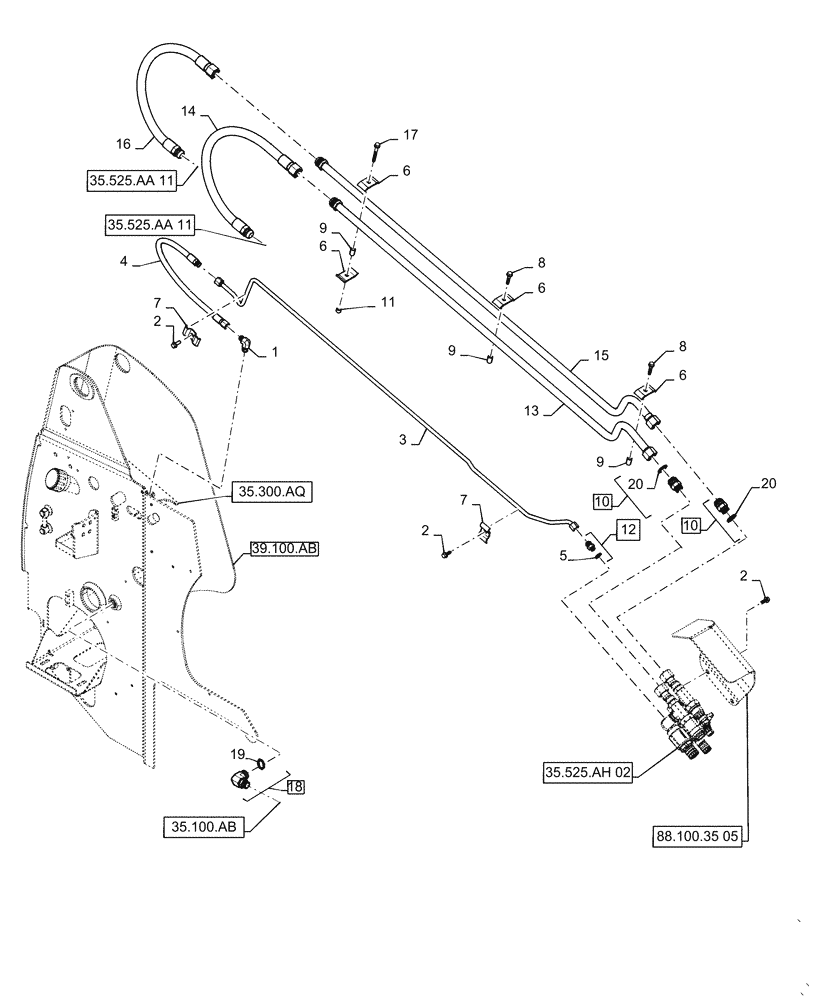

Схема запчастей Case IH SR240 - (35.525.AA[12]) - AUXILIARY HYDRAULIC, HIGH FLOW, BOOM SECTION, BASIC (35) - HYDRAULIC SYSTEMS
39.100.ab
2
15
11
6
2
16
9
7
10
8
20
6
5
20
6
13
10
9
19
4
8
12
3
9
7
6
18
17
2
1
14
88.100.35 05
35.525.aa 11
35.525.aa 11
35.525.ah 02
35.100.ab
35.300.aq

Артикул

Название

Примечание

Количество

1

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

47415664

12.7mm OD, Case Drain

HYD TUBE

1шт.

4

47415665

712mm L, Case Drain

HYDRAULIC HOSE,10mm ID x 712mm L, SAE 100R1

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

84254045

CLAMP,66mm L

66mm L, Tube

4шт.

7

84254056

HOSE CLAMP,69.2mm L

69.2mm L, Butterfly Tube

2шт.

8

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

9

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

10

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 20

2шт.

11

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

12

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 5

1шт.

13

84322579

25.4mm OD x 1752.2mm L, High Flow

HYD TUBE

1шт.

14

84322581

Highflow Aux

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

15

84322582

25.4mm OD x 1693.4mm L, High Flow

HYD TUBE

1шт.

16

84322584

High Flow Aux

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

17

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

18

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 19

1шт.

19

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Выбрано товаров: 20
