Запчасти Case IH SR220 (29.202.AJ[02]) - AXLE HUB ASSY (29) - HYDROSTATIC DRIVE

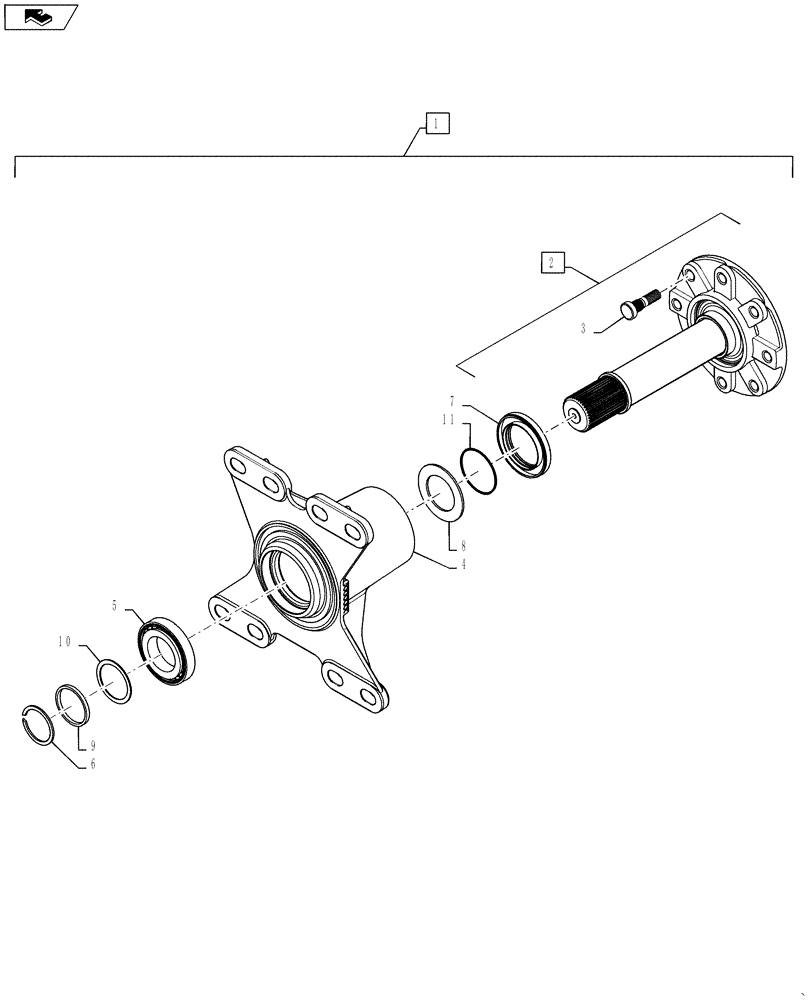

Схема запчастей Case IH SR220 - (29.202.AJ[02]) - AXLE HUB ASSY (29) - HYDROSTATIC DRIVE
6
7
3
10
home
9
2
4
1
5
8
11

Артикул

Название

Примечание

Количество

1

84596294

Planetary, HD, Incl 2 - 11, Years: -02-OCT-16

4WD AXLE ASSY

1шт.

1

48024992

Planetary, HD, Incl 2 - 11, Gray, Start Year: 03-OCT-16

AXLE

1шт.

2

84595792

Assembly, Incl 3, Years: -02-OCT-16

HUB

1шт.

2

84598226

Assembly, Incl 3, Gray, Start Year: 03-OCT-16

1шт.

3

84249319

Wheel, M16 - 2 x 60mm, Class 10.9, ZND, Pan Head

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

8шт.

4

84354066

Planetary

AXLE HOUSING

1шт.

5

48024991

TAPERED BEARING,Roller, 61.913mm ID x 110mm OD x 22mm W

2шт.

6

84239398

External, 61.9mm Shaft

SNAP RING,M61.9, Ext

1шт.

7

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Oil, 76.2mm ID x 109.95mm OD x 13mm Thick

1шт.

8

47427716

63.00mm ID x 99.25mm OD x 3.20mm Thick

WASHER,63mm ID x 99.25mm OD x 3.2mm Thk

1шт.

9

84499772

62.25mm ID x 69.0mm OD x 5.3mm Thick

SPACER,62.25mm ID x 69mm OD x 5.3mm L

1шт.

Only One Ref 9 Used Per Axle Assembly

1шт.

9

84499774

62.25mm ID x 69.0mm OD x 5.8mm Thick

SPACER,62.25mm ID x 69mm OD x 5.8mm L

1шт.

Only One Ref 9 Used Per Axle Assembly

1шт.

9

84499778

62.25mm ID x 69.0mm OD x 6.3mm Thick

SPACER,62.25mm ID x 69mm OD x 6.3mm L

1шт.

Only One Ref 9 Used Per Axle Assembly

1шт.

9

84499784

62.25mm ID x 69.0mm OD x 6.8mm Thick

SPACER,62.25mm ID x 69mm OD x 6.8mm L

1шт.

Only One Ref 9 Used Per Axle Assembly

1шт.

10

84404996

Shim, 61.94mm Shaft, 1.58mm Thick

SHIM,62.25mm ID x 76.2mm OD x 1.58mm Thk

1шт.

Only One Ref 10 Used Per Axle Assembly

1шт.

10

84405003

Shim, 61.94mm Shaft, 1.68mm Thick

SHIM,62.25mm ID x 76.2mm OD x 1.68mm Thk

1шт.

Only One Ref 10 Used Per Axle Assembly

1шт.

10

84393466

Shim, 61.94mm Shaft, 1.78mm Thick

SHIM,62.25mm ID x 76.2mm OD x 1.78mm Thk

1шт.

Only One Ref 10 Used Per Axle Assembly

1шт.

10

84393470

Shim, 61.94mm Shaft, 1.88mm Thick

SHIM,62.25mm ID x 76.2mm OD x 1.88mm Thk

1шт.

Only One Ref 10 Used Per Axle Assembly

1шт.

10

84393472

Shim, 61.94mm Shaft, 1.98mm Thick

SHIM,62.25mm ID x 76.2mm OD x 1.98mm Thk

1шт.

Only One Ref 10 Used Per Axle Assembly

1шт.

11

70929921

O-RING,-036, 70 Duro, 2.364" ID x .070" Thk

1шт.

Выбрано товаров: 29
