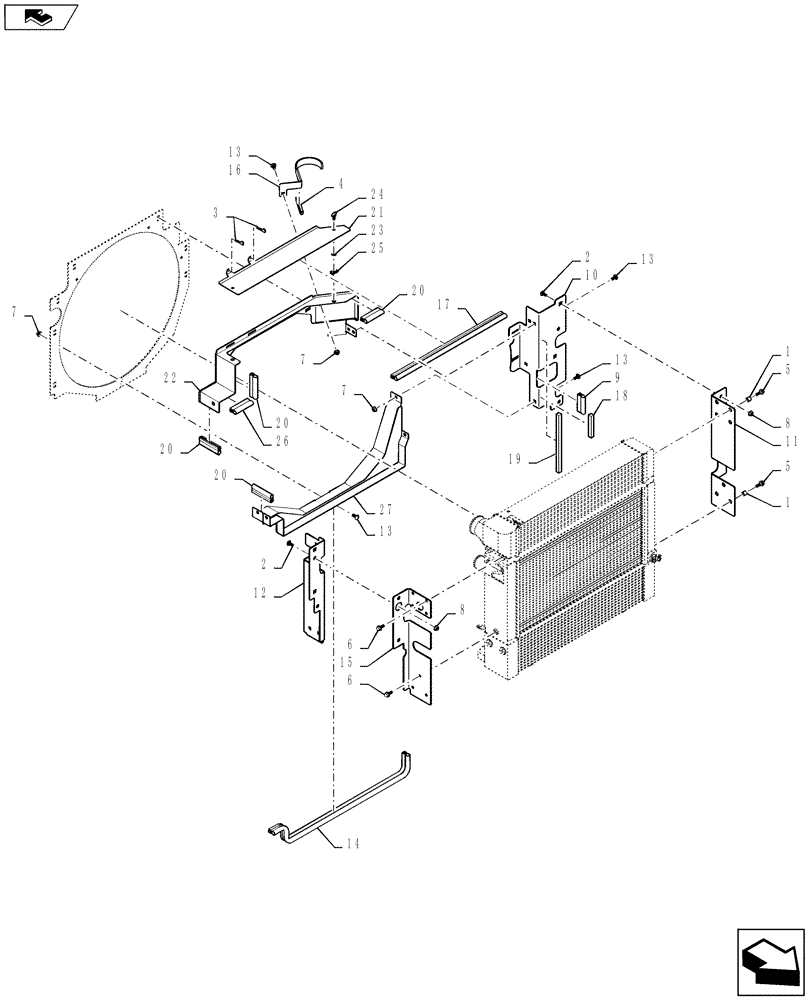

Запчасти Case IH SR220 (10.400.BF) - FAN SHROUD (10) - ENGINE

1

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

7шт.

2

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

3

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

7/64" x 1-5/8" x 0.094", ZND

2шт.

4

291186

PROTECTION STRIP,9.9mm W

Bulk Roll, Cut To Required Length, 2.4ft

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

16шт.

8

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

9

47371788

RUBBER SEAL,72mm L

Bulb, 72mm Long

1шт.

10

47371802

BRACKET

Coolers, RH

1шт.

11

47371807

BRACKET

Coolers, RH

1шт.

12

47384153

BRACKET

Coolers, LH

1шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

16шт.

14

84573594

RUBBER SEAL,815mm L

Bulb, 815mm Long

1шт.

15

84548718

Coolers, LH

BRACKET

1шт.

15

47460610

Coolers, LH, Start Year: 01-AUG-13

BRACKET

1шт.

16

84558147

CAC Clamp

BRACKET

1шт.

17

84268743

Bulb, Bulk, Cut To Length Of 540mm

RUBBER SEAL,2280mm L

1шт.

18

84551644

Strip, 90mm Long

FOAM

1шт.

19

84551643

Strip, 245mm Long

SEALING STRIP,12.7mm W x 245mm L x 12.7mm Thk

1шт.

20

84551540

Bulb, 90mm Long

SEAL

4шт.

21

84551076

Shroud Access

BRACKET

1шт.

22

84550463

Fan Top

SHROUD

1шт.

23

84528025

Wing Head

FASTENER,29.3mm L

2шт.

24

84528026

Fast Lead Screw

RETAINER

2шт.

25

84528035

Nut, Clip-On

CLIP,24.7mm L

2шт.

26

84528298

Bulb, 60mm Long

SEAL

2шт.

27

84550383

Fan Bottom

SHROUD

1шт.
