Запчасти Case IH SR220 (90.105.CU) - ENGINE SOUNDPROOFING (90) - PLATFORM, CAB, BODYWORK AND DECALS

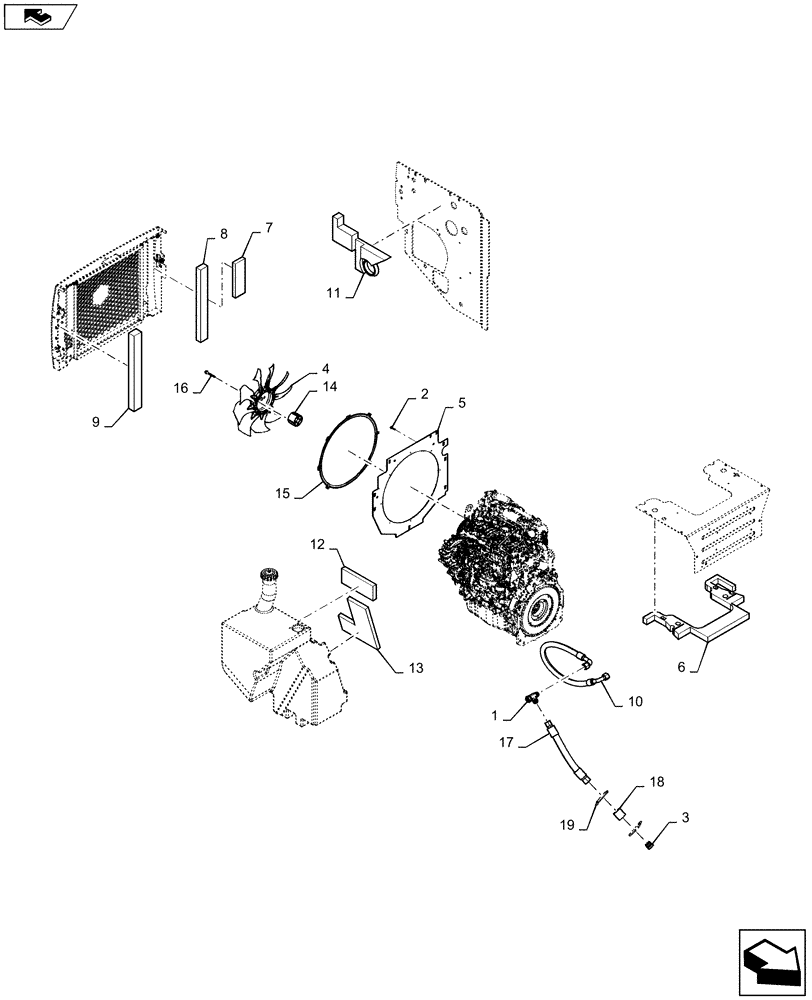

Схема запчастей Case IH SR220 - (90.105.CU) - ENGINE SOUNDPROOFING (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
14
3
home
5
6
12
13
2
8
11
18
15
19
9
7
16
17
10
4

Артикул

Название

Примечание

Количество

1

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

281050

SELF-TAP SCREW,#10-24 x 15.44mm OAL

8шт.

2

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

, Start Year: 28-APR-14

8шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

47488901

Clockwise Pusher

FAN,9 Blades, 560mm OD

1шт.

5

47519888

Shroud Fan Front

PLATE

1шт.

6

84366352

Heal Plate Vertical

FOAM INSULATION

1шт.

7

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

1шт.

8

84372981

FOAM INSULATION

Fan

1шт.

9

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan, RH

1шт.

10

84383953

HOSE ASSY.

Valve Supply

1шт.

11

84481916

LH Tower Rear

FOAM INSULATION

1шт.

12

84481987

Fuel Tank

FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk

1шт.

13

84482003

Fuel Tank

FOAM INSULATION

1шт.

14

84563044

SPACER

1шт.

15

84563410

CIRCULAR BRUSH

1шт.

16

87015921

BOLT,Hex, M10 x 75mm, Cl 10.9

4шт.

17

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

18

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

Выбрано товаров: 20
