Запчасти Case IH SR220 (50.100.AP[03]) - HVAC LARGE FRAME (50) - CAB CLIMATE CONTROL

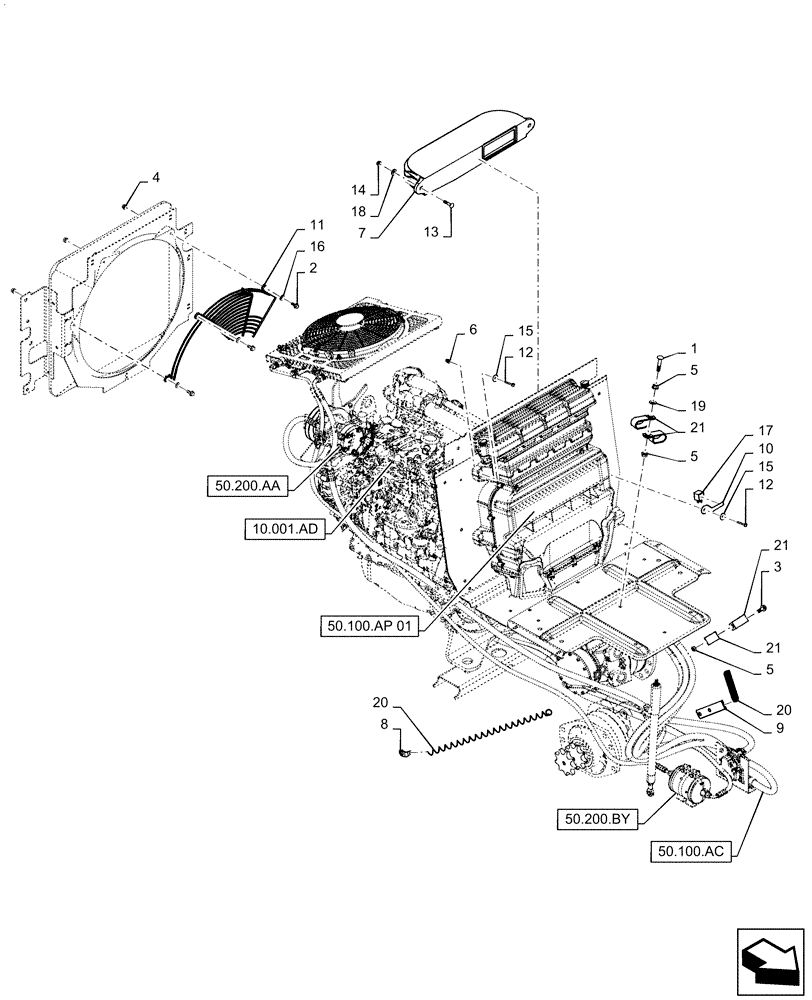

Схема запчастей Case IH SR220 - (50.100.AP[03]) - HVAC LARGE FRAME (50) - CAB CLIMATE CONTROL
11
12
17
10
10.001.ad
50.200.aa
16
21
14
5
3
15
50.200.by
7
18
2
21
13
50.100.ac
21
6
20
8
12
20
9
5
1
4
15
50.100.ap 01
5
19

Артикул

Название

Примечание

Количество

1

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

7

84280313

AIR DUCT

External

1шт.

8

84361522

BRACKET

90 Degree, Two Holes

1шт.

9

84370705

BRACKET

1шт.

10

84380240

BRACKET

Relay

1шт.

11

84561441

GUARD

Fan

1шт.

12

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

17

87355337

RELAY,12V, 45A

Heavy Duty, 45 AMP

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

20

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Extension

2шт.

21

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

Выбрано товаров: 21
