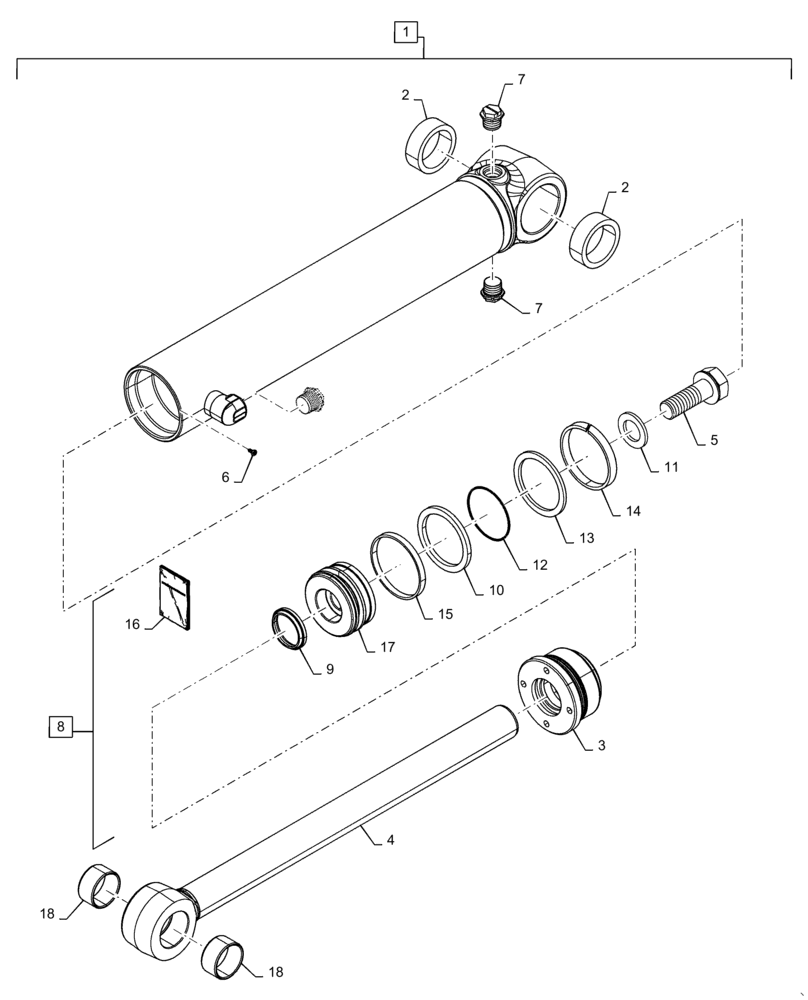

Запчасти Case IH SR220 (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

Bucket Cylinder, Complete, Incl 2 - 15, 17

1шт.

1

47364444C

LIFT CYLINDER

Core

1шт.

1

47364444R

LIFT CYLINDER

Reman

1шт.

2

47364472

BUSHING,44.63mm ID x 57.28mm OD x 19mm L

Composite

2шт.

3

NSS

NOT SOLD SEPARAT

Gland Incl In 1

1шт.

4

84293530

38.1mm Dia.

PISTON ROD

1шт.

5

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

Bolt And Washer Assembly 7/8" Dia X 2.50" Long

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3шт.

8

47364492

SEAL KIT

76.2 x 38.1 Cylinder Incl 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Rod Incl In 8

1шт.

10

1542874C1

SEAL KIT,38.1mm Rod

Rod And Buffer Seals

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer Incl In 8

1шт.

12

270192

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Loader

1шт.

14

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

Rectangular Piston

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

Sheet Incl In 8

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Incl in 1

1шт.

18

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Rod Eye

2шт.
