(35.701.BU[02]) - SELF LEVELING, SR220

Запчасти Case IH SR220 (35.701.BU[02]) - SELF LEVELING, SR220 (35) - HYDRAULIC SYSTEMS

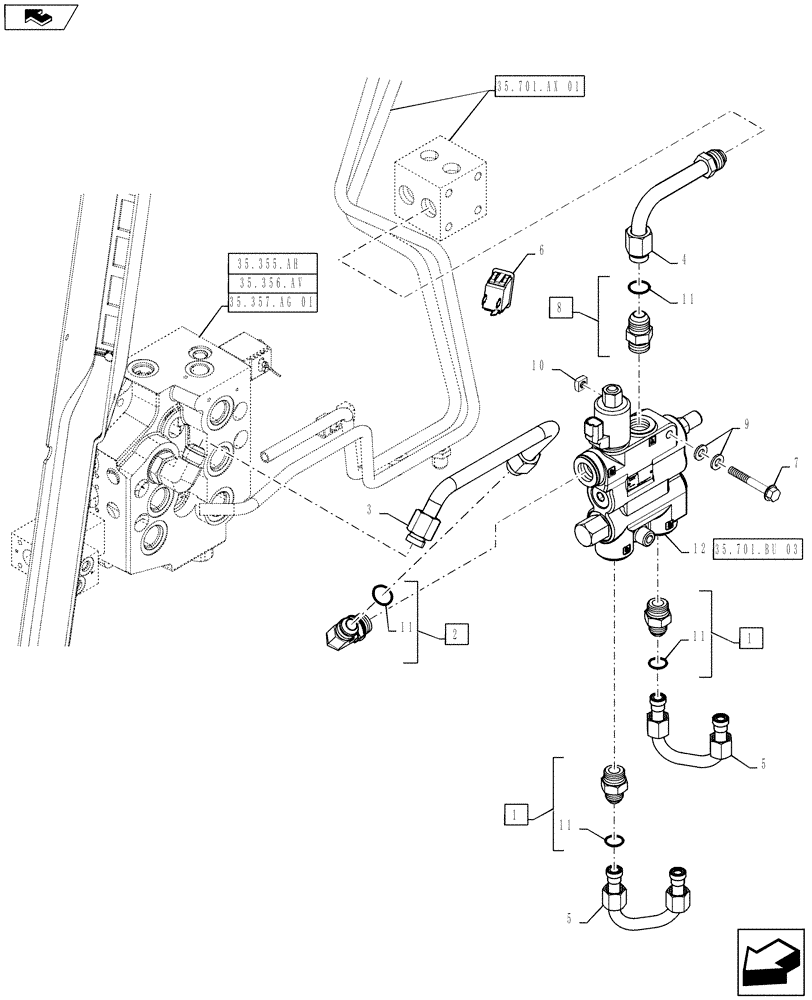

Схема запчастей Case IH SR220 - (35.701.BU[02]) - SELF LEVELING, SR220 (35) - HYDRAULIC SYSTEMS
35.701.bu 03
8
home
9
3
11
11
35.356.av
6
5
35.355.ah
11
1
2
35.357.ag 01
5
35.701.ax 01
10
7
12
11
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 11

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 11

1шт.

3

84186140

RIGID TUBE

Loader Valve To Self Leveling Valve

1шт.

4

84258865

RIGID TUBE

Self Leveling Valve To Manifold

1шт.

5

84258866

RIGID TUBE

Self Leveling Valve To Loader Tip Tubes

2шт.

6

84271904

SWITCH

Rocker, Self Leveling, Located In LH A-Post In Cab, Not Shown

1шт.

7

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

8

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

7/8" - 14 , 37° JIC x 7/8" - 14 ORB, Incl 11

1шт.

9

87655042

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8.8, ZND

2шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8" ORB

4шт.

12

84326481

Self Leveling, Complete

VALVE

1шт.

See Figure 35.701.BU(03) For Service Parts

1шт.
