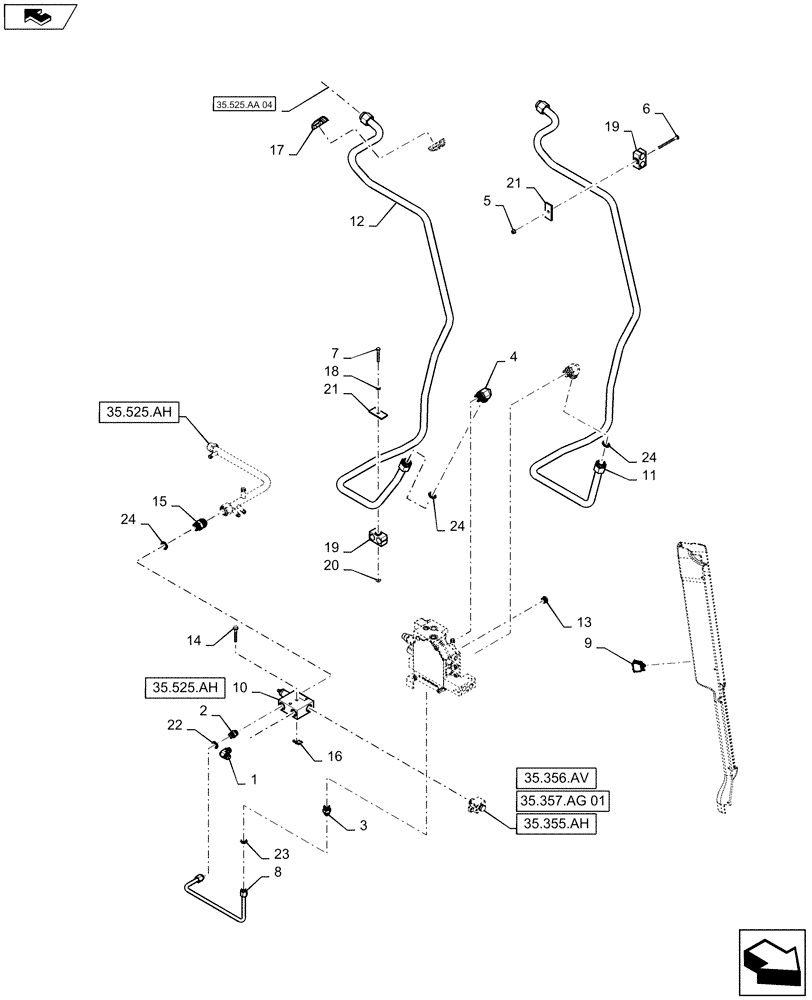

Запчасти Case IH SR220 (35.525.AA[03]) - AUXILIARY CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 22

1шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 22

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 23

1шт.

4

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 24

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

84186155

High Flow Valve To Loader Valve, Years: -05-JAN-16

TUBE

1шт.

8

47900681

HYD TUBE

High Flow Valve to Loader Valve, Start Year: 06-JAN-15

1шт.

9

84251427

SWITCH

High Flow, Located In Cab, Not Shown

1шт.

10

84256405

HYDRAULIC VALVE

High Flow Valve

1шт.

See Figure 35.525.AH For Service Parts

1шт.

11

84322565

High Flow Auxiliary, Loader Valve To LH Arm

HYD TUBE

1шт.

12

84323950

High Flow Auxiliary, Loader Valve To LH Arm

HYD TUBE

1шт.

13

84373460

PLUG,23.8mm OD

Load Check

1шт.

14

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

15

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 24

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

87017999

SUPPORT

Hydraulic Tube

2шт.

18

87655042

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

2шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8.8, ZND

1шт.

21

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp, Top

2шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

2шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8" ORB

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

3шт.
