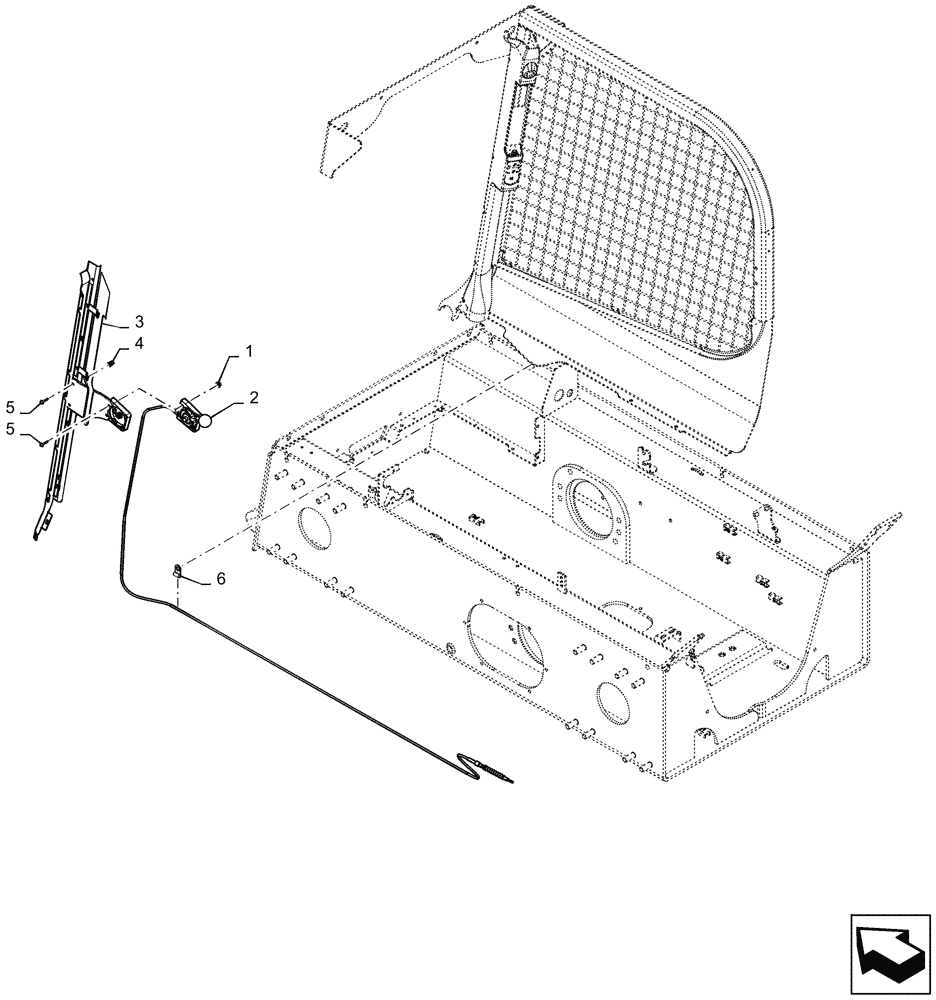

Запчасти Case IH SR220 (10.220.AA[03]) - HAND THROTTLE, MECHANICAL CONTROLS (10) - ENGINE

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

2

84262592

Throttle to Governor, 3068mm L, Years: -21-MAR-13

HANDLE GRIP

1шт.

2

47408125

Throttle to Governor, 3092mm L, Start Year: 22-MAR-13

THROTTLE CONTROL,3092mm L

1шт.

3

84333202

Hand Throttle, Gray, Years: -21-MAR-13

MOUNT

1шт.

3

47464466

Hand Throttle, Gray, Years: 22-MAR-13-30-SEP-13

MOUNT

1шт.

3

47536465

Hand Throttle, Gray, Start Year: 01-OCT-13

MOUNT

1шт.

4

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

5

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

6

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
