Запчасти Case IH SR220 (55.512.BQ[01]) - INSTRUMENT CLUSTER AND KEYED IGNITION, STANDARD (55) - ELECTRICAL SYSTEMS

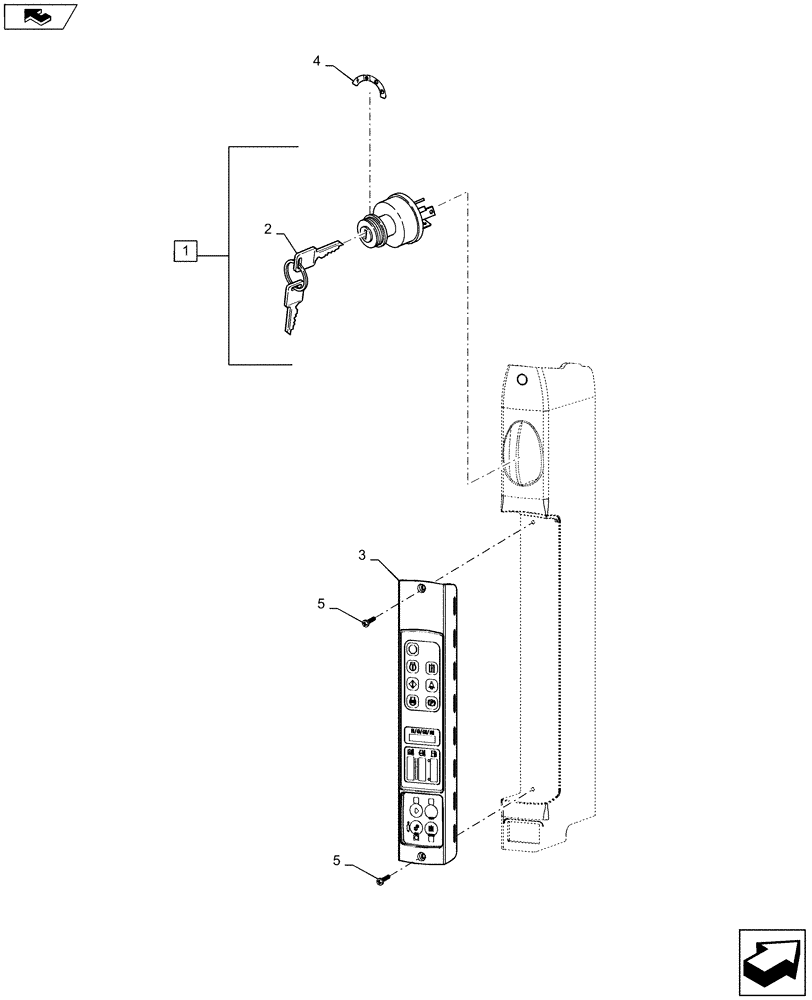

Схема запчастей Case IH SR220 - (55.512.BQ[01]) - INSTRUMENT CLUSTER AND KEYED IGNITION, STANDARD (55) - ELECTRICAL SYSTEMS
1
5
5
2
3
4
home

Артикул

Название

Примечание

Количество

1

282775A1

IGNITION SWITCH

with Padded Keys, Incl 2

1шт.

2

1964831C2

IGNITION KEY

Ignition Switch And Door, Padded, Case Logo

1шт.

3

84384712

Standard

INSTRUMENT CLUSTER

1шт.

3

84384712R

REMAN-INSTR CLUSTER

Standard

1шт.

3

84384712C

CORE-CLUSTER, INSTR

Return Number

1шт.

4

84377886

Keyed Ignition Switch

DECAL

1шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

Выбрано товаров: 7
