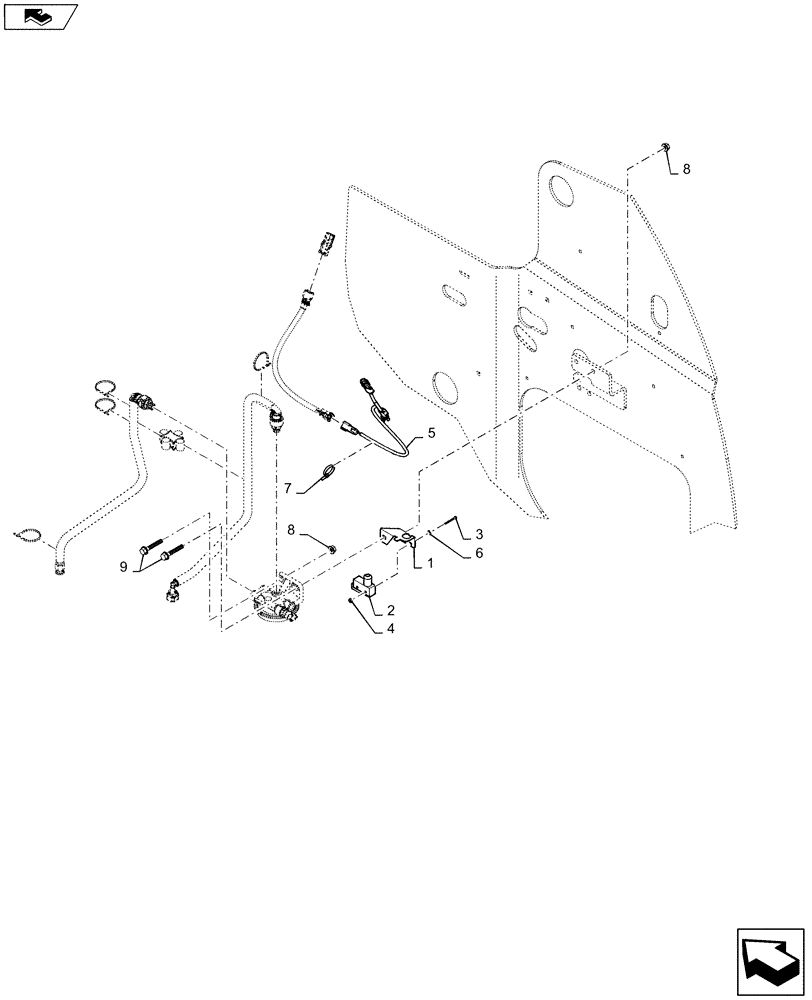

Запчасти Case IH SR220 (55.408.BL) - LAP BAR SWITCH, SR220 (55) - ELECTRICAL SYSTEMS

1

84586130

BRACKET

Switch, Mounting

1шт.

2

87051110

DOOR SWITCH

Lap Bar Switch

1шт.

3

9635014

SCREW,Cross Pan HD, #6 x 1-1/4"

2шт.

4

280859

NUT,Keps, #6-32

2шт.

5

84582667

WIRE HARNESS

Lap Bar, Fuel Primer Pump

1шт.

6

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

9

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.
