Запчасти Case IH SR220 (55.302.AI[03]) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

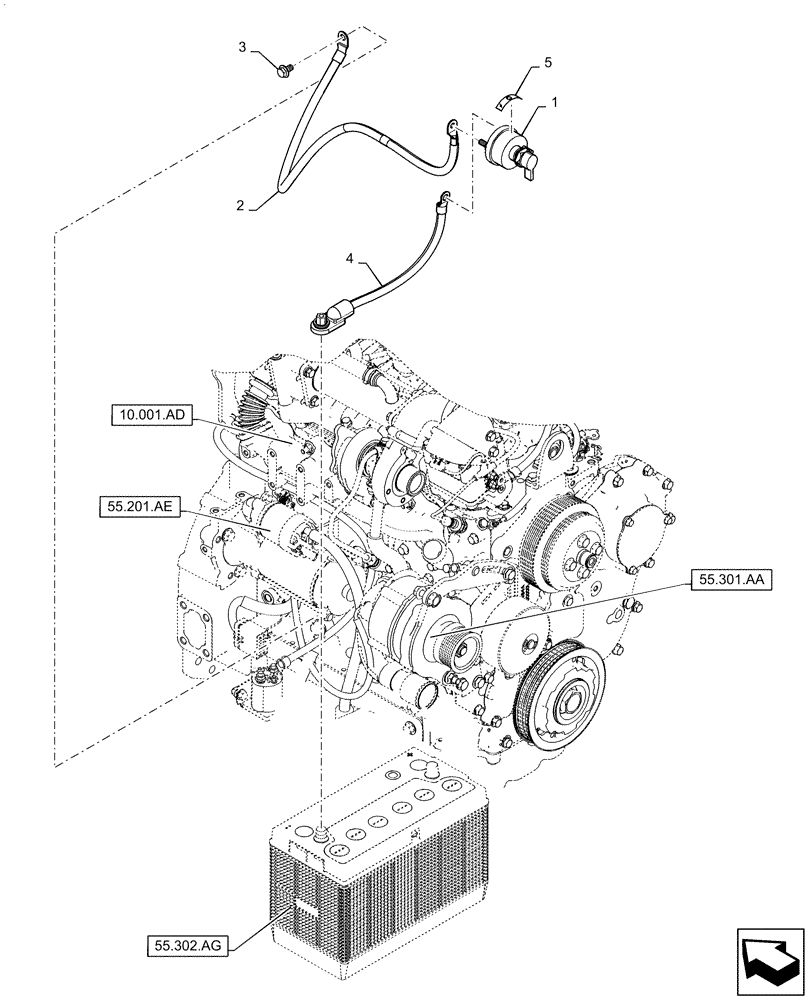

Схема запчастей Case IH SR220 - (55.302.AI[03]) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS
10.001.ad
4
3
2
1
5
55.301.aa
55.302.ag
55.201.ae

Артикул

Название

Примечание

Количество

1

87458467

ROTARY SWITCH

Master Battery Disconnect, Years: -16-JUL-17

1шт.

1

48109942

Master Battery Disconnect, Start Year: 17-JUL-17

ROTARY SWITCH

1шт.

2

84599386

GROUND CABLE

992mm L, Disconnect Switch to Engine Ground

1шт.

3

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

4

47721262

340mm L, Negative Battery Terminal to Disconnect Switch, Years: -16-JUL-17

NEG BATTERY CABLE

1шт.

Service Until Unavailable, Then Replace With 48109939

1шт.

4

48109939

375mm L, Negative Battery Terminal to Disconnect Switch, Start Year: 17-JUL-17

NEG BATTERY CABLE

1шт.

5

176332A1

DECAL

Battery Disconnect

1шт.

Выбрано товаров: 8
