Запчасти Case IH SR220 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (20-MAY-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

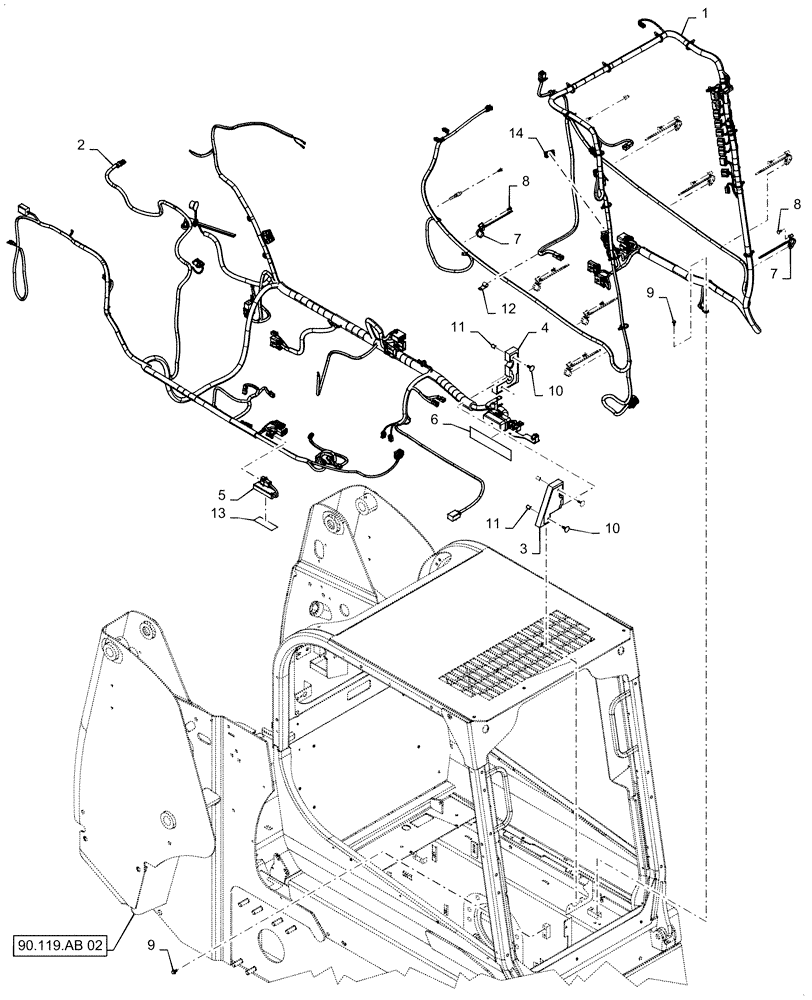

Схема запчастей Case IH SR220 - (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS, OPEN CAB (20-MAY-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS
14
90.119.ab 02
11
1
7
4
3
9
10
11
5
6
9
13
2
8
7
8
12
10

Артикул

Название

Примечание

Количество

1

84353936

Cab, Mechanical Basic, Years: -17-SEP-11

WIRE HARNESS

1шт.

1

84423647

Cab, Mechanical Basic, Years: 18-SEP-11-14-MAR-12

WIRE HARNESS

1шт.

1

84553269

Cab, Mechanical Basic, Years: 15-MAR-12-14-NOV-12

WIRE HARNESS

1шт.

1

47377757

WIRE HARNESS

Cab, Mechanical Basic, Start Year: 15-NOV-12

1шт.

2

84352397

Chassis, Mechanical Controls, Years: -28-FEB-12

WIRE HARNESS

1шт.

2

84544791

Chassis, Mechanical Controls, Years: 29-FEB-12-15-APR-12

WIRE HARNESS

1шт.

2

84605452

Chassis, Mechanical Controls, Years: 16-APR-12-30-APR-13

WIRE HARNESS

1шт.

2

47377778

Chassis, Mechanical Controls, Years: 01-MAY-13-09-SEP-13

WIRE HARNESS

1шт.

2

47523494

Chassis, Mechanical Controls, Start Year: 10-SEP-13

WIRE HARNESS

1шт.

3

84309934

Assy, LH, Years: -18-FEB-13

SEAL

1шт.

3

47535366

Assy, LH, Start Year: 19-FEB-13

SEAL

1шт.

4

84309935

Assy, LH, Years: -18-FEB-13

SEAL

1шт.

4

47535368

Assy, LH, Start Year: 19-FEB-13

SEAL

1шт.

5

84131374

MODULE

Driver, PWM Prop Aux, Years: -14-NOV-12

1шт.

5

47369995

PROXIMITY SWITCH

Driver, PWM Prop Aux, Years: 15-NOV-12-17-APR-13

1шт.

5

84131374

MODULE

Driver, PWM Prop Aux, Start Year: 18-APR-13

1шт.

6

84380451

Fuse Box Layout Mech

DECAL

1шт.

7

84420746

CABLE TIE,403.9mm L, Nylon

Tie

10шт.

8

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

10

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

11

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

12

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

13

NSS

NOT SOLD SEPARAT

Double Sided Tape, 25.4mm W x 3mm Thk x 150mm L

1шт.

Procure Locally

1шт.

14

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

Выбрано товаров: 26
