Запчасти Case IH SR220 (50.200.BY) - AIR CONDITIONER, PLUMBING (50) - CAB CLIMATE CONTROL

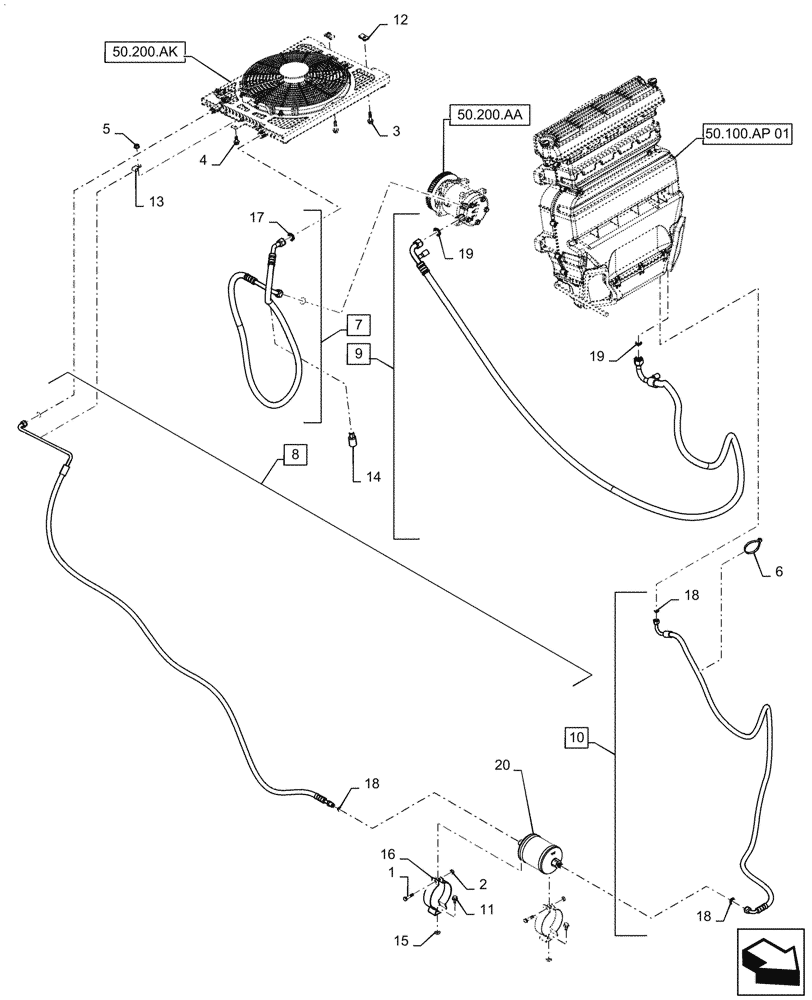

Схема запчастей Case IH SR220 - (50.200.BY) - AIR CONDITIONER, PLUMBING (50) - CAB CLIMATE CONTROL
19
5
1
12
20
10
15
50.100.ap 01
50.200.ak
50.200.aa
14
17
7
8
18
19
2
18
4
3
9
16
6
18
13
11

Артикул

Название

Примечание

Количество

1

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

2

9706690

NUT,M8 x 1.25, Cl 8

2шт.

3

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

7

47385522

A/C HOSE

AC Discharge, Incl 17, Years: -30-JUN-15

1шт.

7

47872437

AIR HOSE

AC Discharge, Incl 17, Start Year: 01-JUL-15

1шт.

8

84407297

AC Liquid, Incl 18, Years: -30-JUN-15

A/C HOSE

1шт.

8

47860649

AC Liquid, Incl 18, Start Year: 01-JUL-15

A/C HOSE

1шт.

9

84473564

AC Suction, Incl 19, Years: -30-JUN-15

HOSE ASSY.

1шт.

9

84586894

HOSE

AC Suction, Incl 19, Start Year: 01-JUL-15

1шт.

10

84403037

AC Liquid, Incl 18

HOSE ASSY.

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

12

86625073

SPRING NUT,M6 x 1

4шт.

13

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

87000227

SWITCH, A/C HIGH PRE

Two Wire

1шт.

15

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

16

87105841

BRACKET

Receiver Dryer, Years: -29-SEP-14

2шт.

16

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Receiver Dryer, Start Year: 30-SEP-14

2шт.

17

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

20

47821526

RECEIVER-DRYER

1шт.

Выбрано товаров: 24
