(35.701.BU[01]) - NO SELF LEVELING

Запчасти Case IH SR220 (35.701.BU[01]) - NO SELF LEVELING (35) - HYDRAULIC SYSTEMS

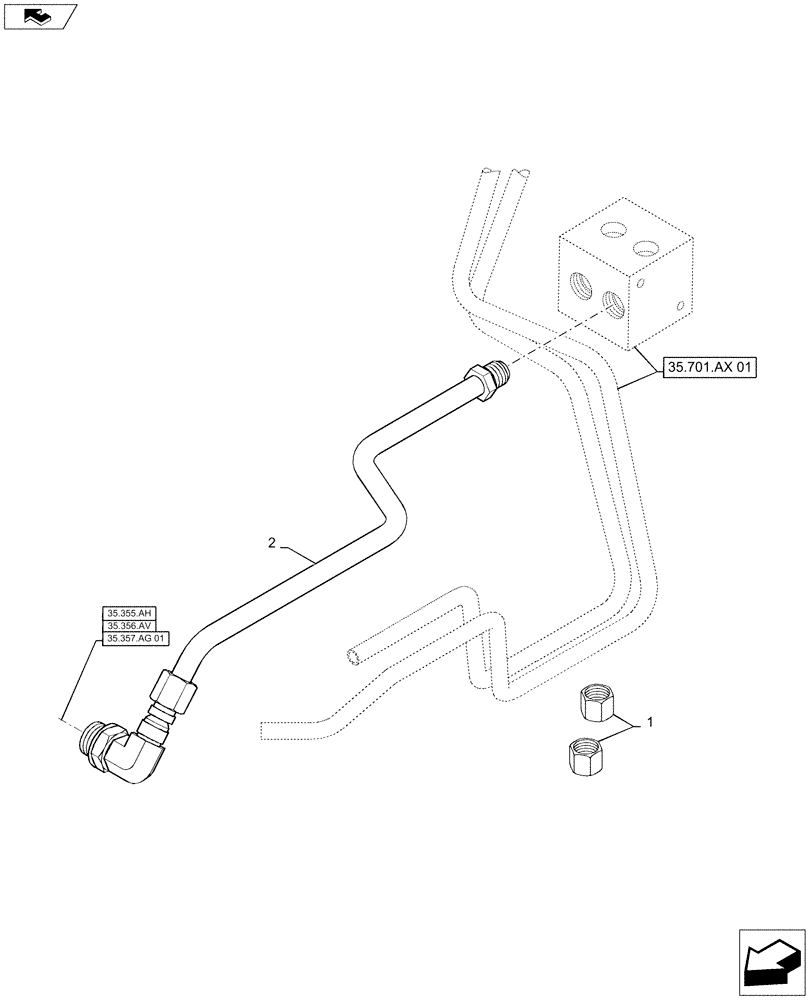

Схема запчастей Case IH SR220 - (35.701.BU[01]) - NO SELF LEVELING (35) - HYDRAULIC SYSTEMS
1
35.356.av
35.701.ax 01
35.355.ah
35.357.ag 01
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

262159

CAP,3/4" - 16 Fem JIC

Used On Loader Tip Tubes

2шт.

2

84186149

Loader Valve To Manifold

RIGID TUBE

1шт.

3

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole, Located In LH A-Post In Cab, Not Shown

1шт.

Выбрано товаров: 3
