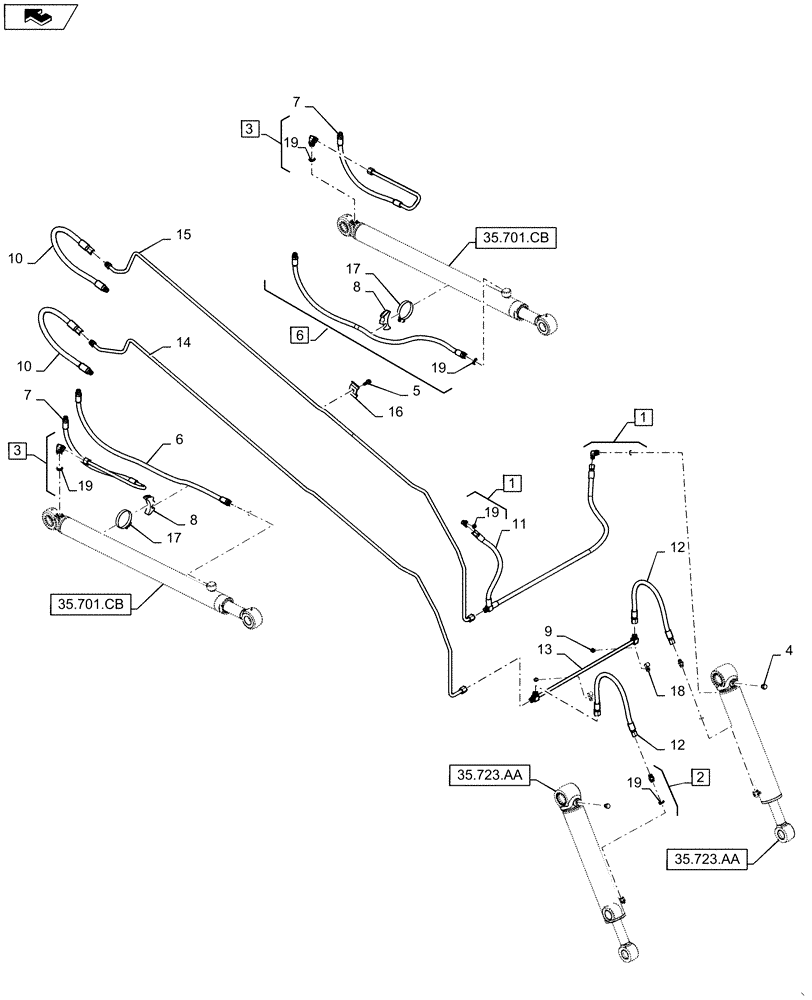

Запчасти Case IH SR220 (35.701.AX[02]) - LOADER ARM LINES, SR220 (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

4

214389

PLUG,3/4" - 16 ORB

2шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

6

84255974

3/4" - 16 x 3/4" - 16 x 3/8" ID x 43.5", Lift Cylinder, Rod

HOSE,9.53mm ID x 1105mm L, SAE 100R17

2шт.

7

84255975

Lift Cylinder, Base

TUBE

2шт.

8

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

9

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

Flat Head, M8 - 1.25 x 15mm, CST, ZND

2шт.

10

84322590

Loader Valve Tubes To Loader Arm Tubes

FLEXIBLE HOSE,12.7mm ID x 661mm L, SAE 100R16

2шт.

11

84346682

Loader Arm Tube To Bucket Cylinder, Base

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

1шт.

12

84346755

Crossover Tube To Bucket Cylinder, Rod

HOSE ASSY.,9.53mm ID x 568mm L, SAE 100R16

2шт.

13

84346785

Crossover, Bucket Cylinder

HYD TUBE

1шт.

14

84352341

Loader Arm

HYD TUBE

1шт.

15

84352352

Loader Arm

HYD TUBE

1шт.

16

86501706

CLAMP

Double Tube

4шт.

17

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

18

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

8шт.
