Запчасти Case IH SR220 (35.701.AX[01]) - LOADER VLAVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS

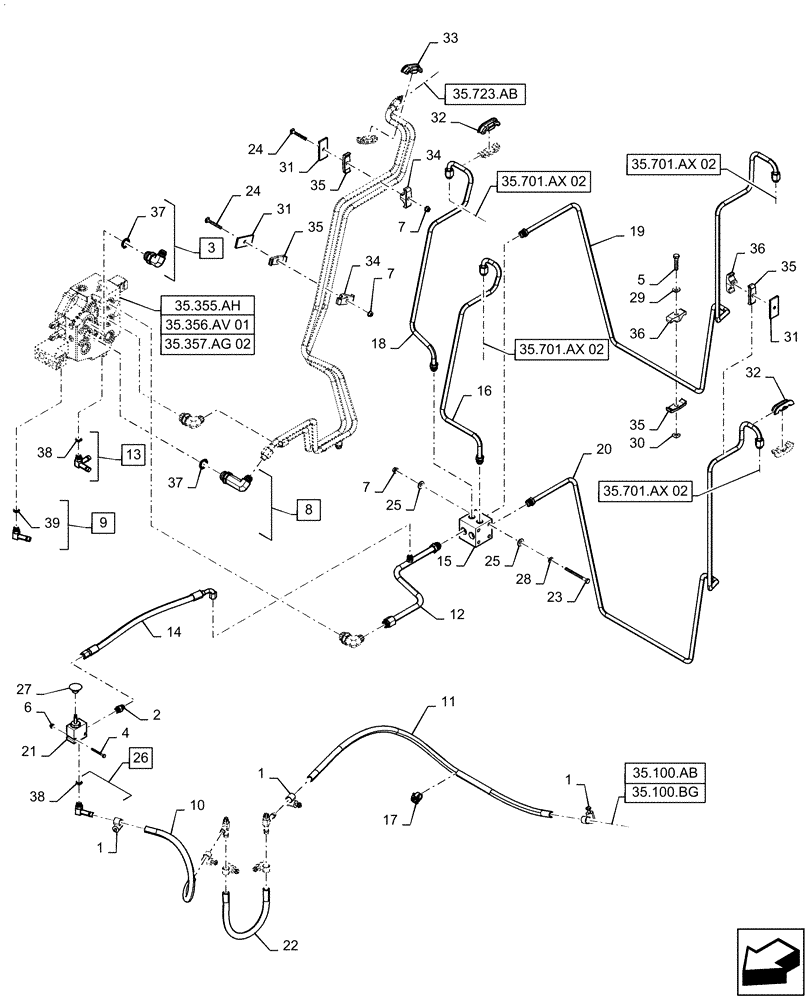

Схема запчастей Case IH SR220 - (35.701.AX[01]) - LOADER VLAVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS
35.100.bg
16
2
1
33
35
15
38
7
35
37
6
1
31
3
38
26
32
31
8
23
24
18
36
31
9
34
21
37
1
25
36
11
30
7
7
22
20
13
35
17
5
39
10
35
4
32
34
19
29
28
14
25
12
27
24
35.357.ag 02
35.355.ah
35.356.av 01
35.723.ab
35.100.ab
35.701.ax 02
35.701.ax 02
35.701.ax 02
35.701.ax 02

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 37

3шт.

4

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

8

47647779

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 37

1шт.

9

47728111

Incl 39, Years: -02-OCT-16

HOSE FITTING,1/2" X 1/2" Barb X 7/16" - 20 ORB

1шт.

9

47451735

TEE,3/8” JIC x 1/4” ORB x 3/8” JIC

Incl 39, Start Year: 03-OCT-16

1шт.

10

47735103

Override to Aux Drain, Years: -02-OCT-16

HOSE,12.7mm ID X 510mm L

1шт.

10

47976179

Override to Aux Drain, Start Year: 03-OCT-16

HYD TUBE

1шт.

11

47735108

HOSE,12.7mm ID X 1060mm L

Aux Drain to Drain Manifold

1шт.

12

84181021

RIGID TUBE

Valve to Manifold, Lift

1шт.

13

84187294

Incl 38, Years: -02-OCT-16

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

13

47978013

FITTING

LDR Drain, Incl 38, Start Year: 03-OCT-16

1шт.

14

84201224

Override, Years: -30-JAN-17

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

14

48093517

Override, Start Year: 31-JAN-17

HYDRAULIC HOSE,6.3mm ID x 535mm L, SAE 100R16

1шт.

15

84258823

HYDRAULIC MANIFOLD

Block

1шт.

16

84258884

Manifold to Right Arm, Lower

RIGID TUBE

1шт.

17

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

18

84259727

Manifold to Right Arm, Lift

RIGID TUBE

1шт.

19

84259729

Manifold to Left Arm, Lift

RIGID TUBE

1шт.

20

84259731

Manifold to Left Arm, Lower

RIGID TUBE

1шт.

21

84294239

Boom Override

VALVE

1шт.

22

84373394

, Years: -02-OCT-16

HOSE,12.7mm ID x 410mm L

1шт.

22

47978377

HYD TUBE

LDR Valve Drain, Start Year: 03-OCT-16

1шт.

23

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

24

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

26

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 38, Years: -02-OCT-16

1шт.

26

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 38, Start Year: 03-OCT-16

1шт.

27

87522292

KNOB

Override Valve

1шт.

28

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

29

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

30

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

31

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

32

376523A2

SUPPORT,1/2"

Tube

4шт.

33

376524A2

SUPPORT,5/8"

Tube

2шт.

34

D120613

CLAMP,20mm ID

2шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

36

D120679

CLAMP,Tube, 1/2"

2шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 45
