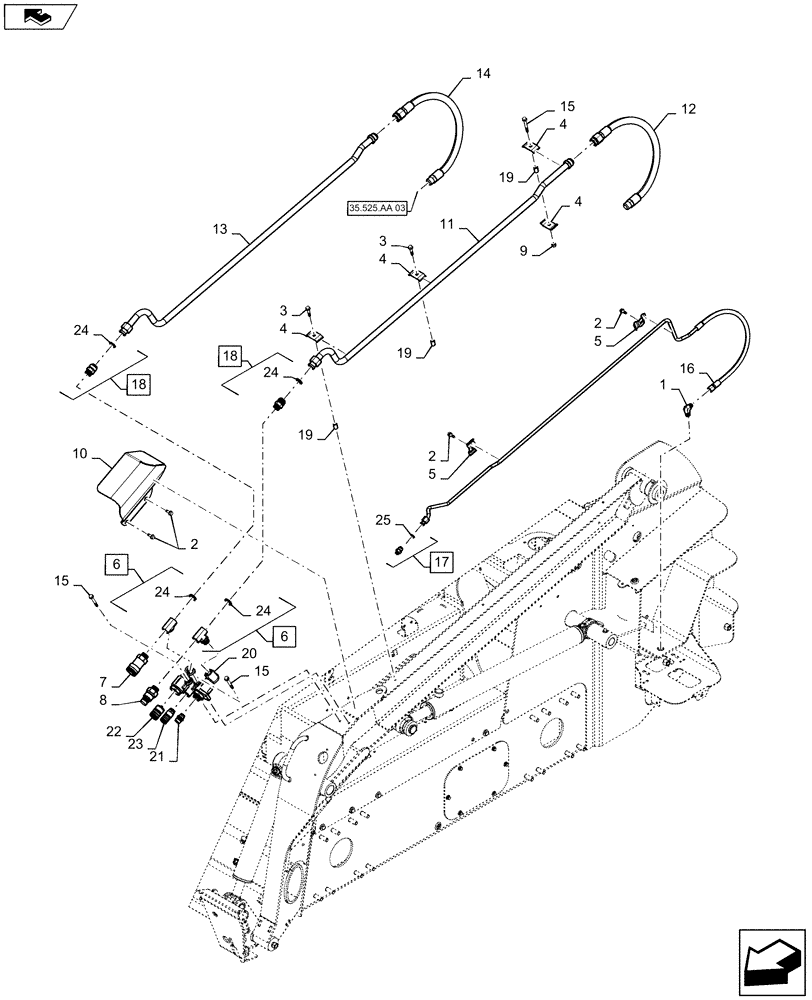

Запчасти Case IH SR220 (35.525.AA[04]) - AUXILIARY BOOM ARM PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

1

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

3

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Tapping, 3/8" - 16 x 1.75

2шт.

4

84254045

CLAMP,66mm L

Tube

4шт.

5

84254056

HOSE CLAMP,69.2mm L

Butterfly

2шт.

6

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee, 1-1/16" - 12 ORB x 1-1/16" - 12 ORB x 1-1/16" - 12 ORB, Incl 24

2шт.

7

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

5/8" Female Quick Coupler

1шт.

8

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

5/8" Male Quick Coupler

1шт.

9

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

11.1mm x 15.9mm x 9.5mm, ZND

1шт.

10

84306937

COVER PLATE

Couplers

1шт.

11

84322579

Male Coupler, High Flow

HYD TUBE

1шт.

12

84322581

Chassis Plumbing To Male Coupler Tube, High Flow

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

13

84322582

Female Coupler, High Flow

HYD TUBE

1шт.

14

84322584

Chassis Plumbing To Female Coupler Tube, High Flow

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

15

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8" -16 x 1.75, ZND

3шт.

16

84338474

Case Drain, Connects To 3/8" Female Coupler

HYD TUBE

1шт.

17

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 25

1шт.

18

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 24

2шт.

19

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

11.1mm x 15.9mm x 25mm, ZND

3шт.

20

84259689

High Flow Connect Under Pressure Manifold, Incl 21 - 23, Years: -15-FEB-13

VALVE

1шт.

20

47447054

VALVE

High Flow Connect Under Pressure Manifold, Incl 21 - 23, Start Year: 15-FEB-13

1шт.

21

84390117

1/2" Male, Years: -15-FEB-13

COUPLING

1шт.

21

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

22

84390118

1/2" Female, Years: -15-FEB-13

COUPLING

1шт.

22

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 15-FEB-13

1шт.

23

84390119

3/8" Female, Years: -15-FEB-13

COUPLING

1шт.

23

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 15-FEB-13

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

4шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

1шт.
