(35.353.AD[05]) - 2 SPEED LINES

Запчасти Case IH SR220 (35.353.AD[05]) - 2 SPEED LINES (35) - HYDRAULIC SYSTEMS

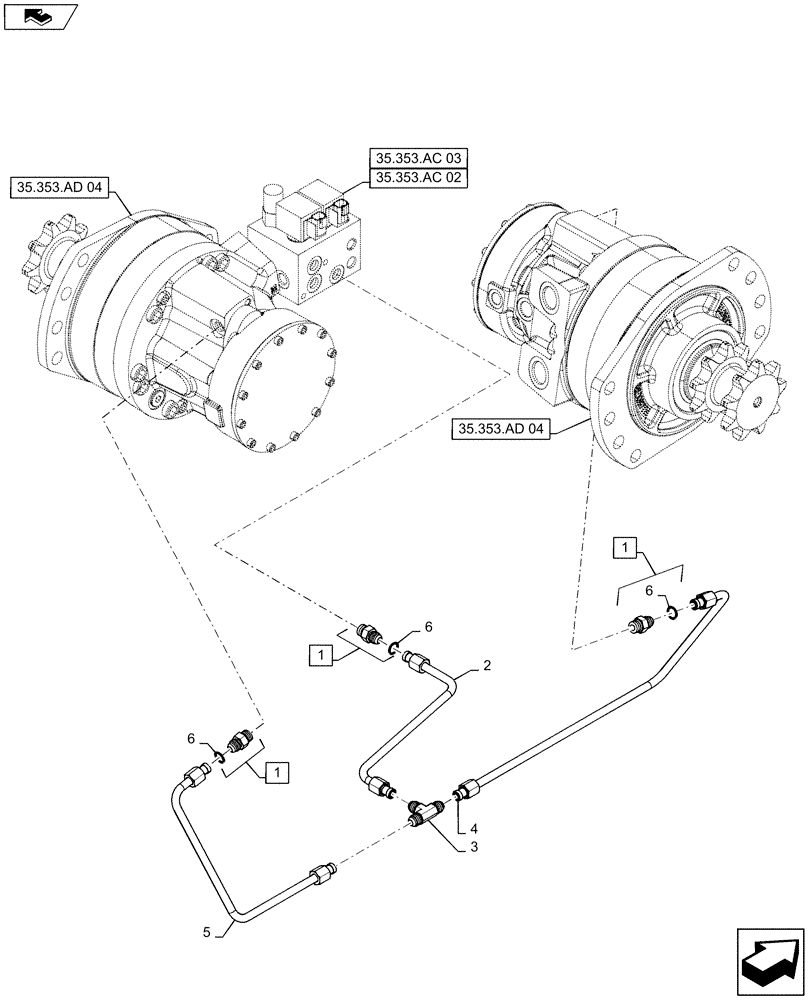

Схема запчастей Case IH SR220 - (35.353.AD[05]) - 2 SPEED LINES (35) - HYDRAULIC SYSTEMS
1
35.353.ad 04
6
1
home
5
4
3
2
35.353.ac 03
35.353.ac 02
6
6
1
35.353.ad 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 6

3шт.

2

84258810

2 Speed Common, Brake Valve To Tee

RIGID TUBE

1шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

4

84259631

2 Speed, Tee To RH Drive Motor

RIGID TUBE

1шт.

5

84258811

2 Speed, Tee To LH Drive Motor

RIGID TUBE

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

3шт.

Выбрано товаров: 6
