Запчасти Case IH SR220 (35.353.AD[03]) - TRAVEL SPEED, 2 SPEED (35) - HYDRAULIC SYSTEMS

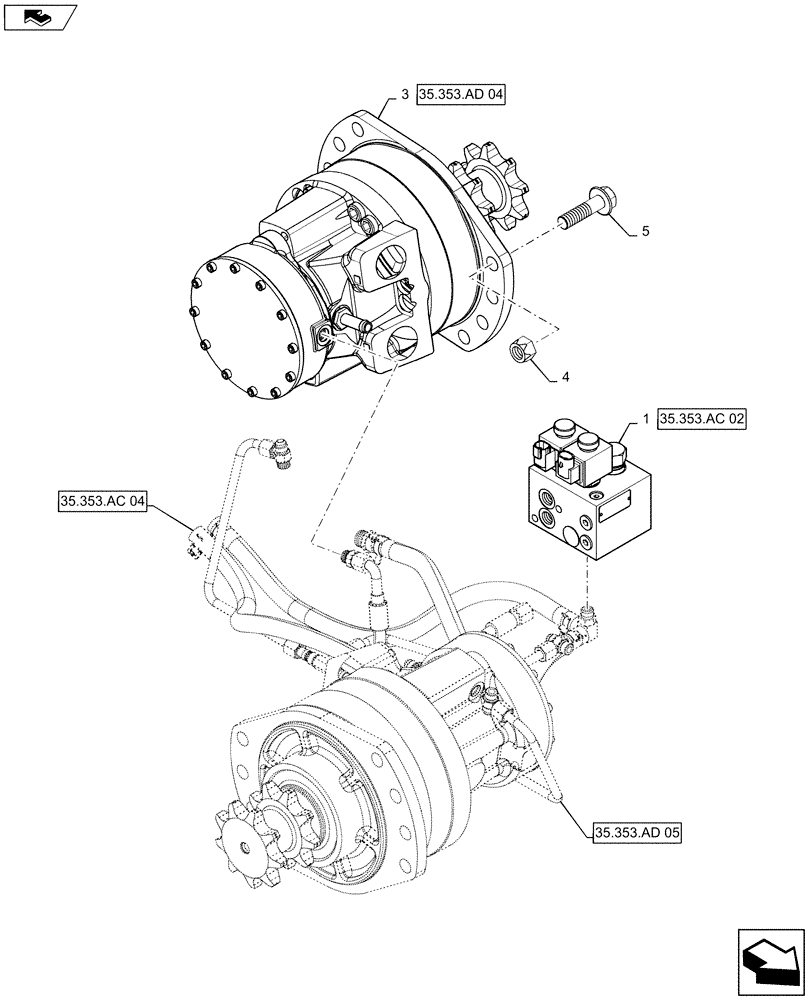

Схема запчастей Case IH SR220 - (35.353.AD[03]) - TRAVEL SPEED, 2 SPEED (35) - HYDRAULIC SYSTEMS
35.353.ac 04
35.353.ad 04
3
1
35.353.ac 02
35.353.ad 05
5
home
4

Артикул

Название

Примечание

Количество

1

84256531

2 Speed, Complete

BRAKE VALVE

1шт.

See Figure 35.353.AC(02) For Service Parts

1шт.

2

84388282

INDICATOR

High Speed, Located In LH A-Post In Cab, Not Shown

1шт.

3

84565752

2 Speed Drive Motor, 470cc, Complete

HYDRAULIC MOTOR,Drive, 470 CC

2шт.

See Figure 35.353.AD(04) For Service Parts

1шт.

3

84565752R

2 Speed Drive Motor, 470cc, Complete

REMAN-HYD MOTOR,Drive, 470 CC

2шт.

3

84565752C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

4

86512555

NUT,M16 x 2, Cl 10

12шт.

5

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

12шт.

Выбрано товаров: 9
