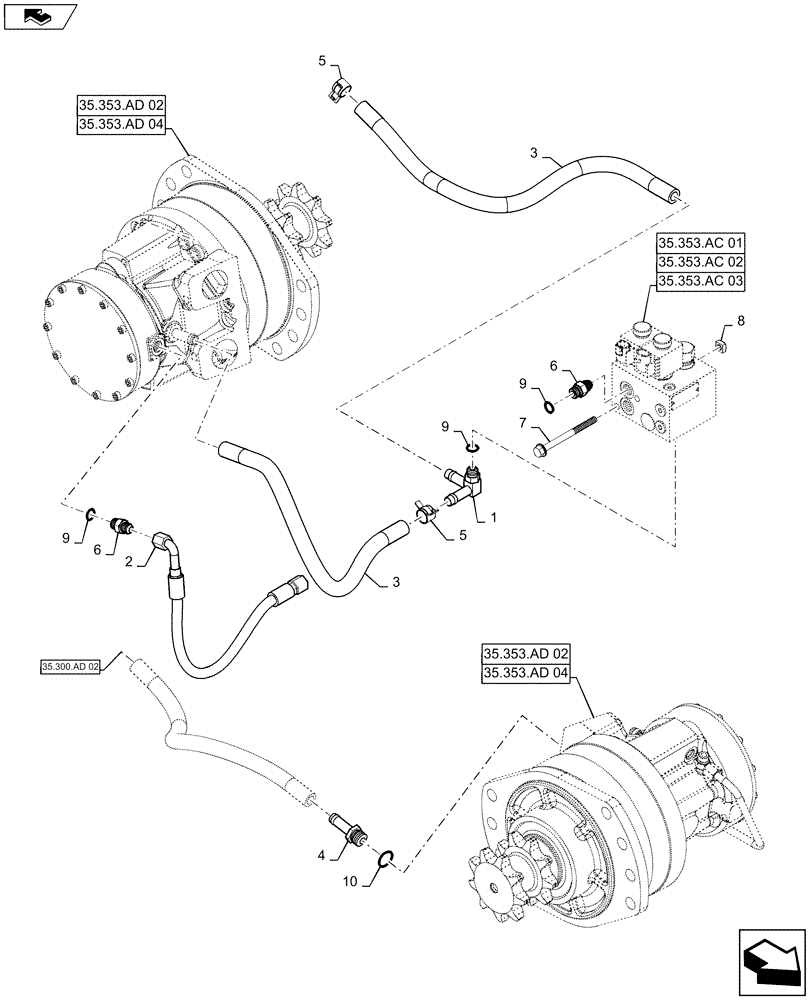

Запчасти Case IH SR220 (35.353.AC[04]) - BRAKE LINES (35) - HYDRAULIC SYSTEMS

1

84187294

1/2" Hose Barb x 1/2" Hose Barb x 9/16" - 18 ORB, Incl 9

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

2

84257177

Brake Valve To Drive Motor

HOSE ASSY.,6.35mm ID x 420.8mm L, SAE 100R17

2шт.

3

84257173

1/2" ID x 22-1/2" Long, Case Drain, Drive Motor To Case Drain Manifold

HOSE,12.7mm ID x 570mm L

3шт.

4

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 10

2шт.

5

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

6шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 9

3шт.

7

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8.8, ZND

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

4шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

2шт.
