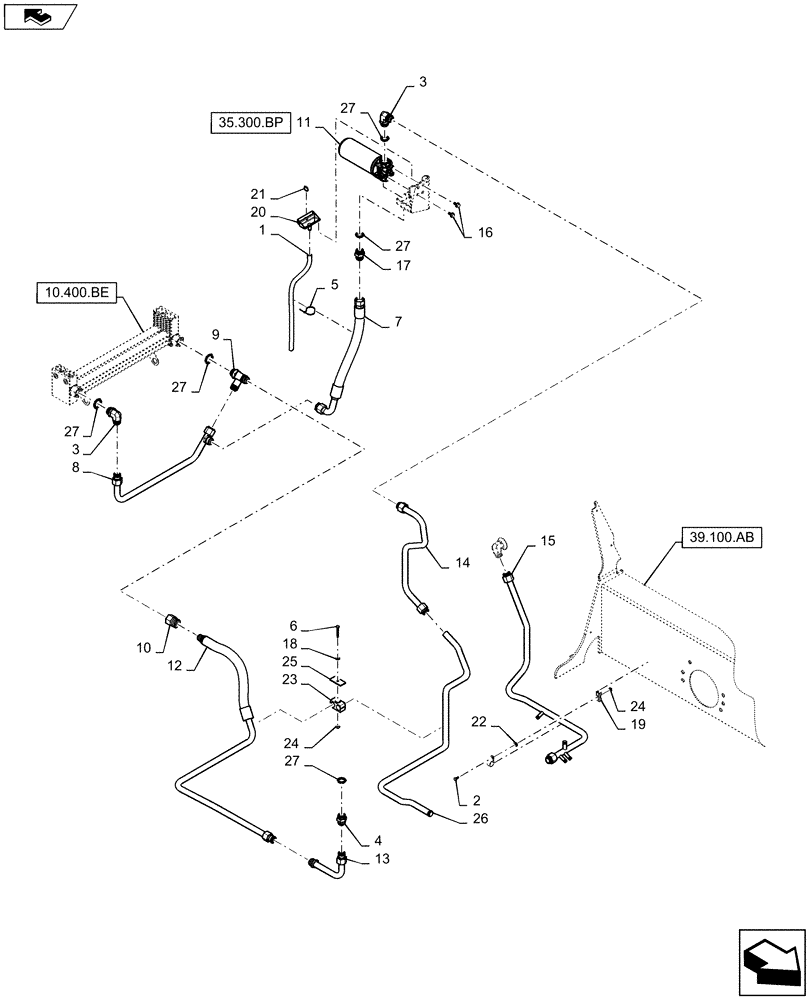

Запчасти Case IH SR220 (35.300.AD[02]) - HYDRAULIC RETURN PLUMBING (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 27

2шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 27

1шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47399152

From Return Filter To Oil Cooler Outlet Tube

HYDRAULIC HOSE

1шт.

8

84259444

RIGID TUBE

Oil Cooler Outlet

1шт.

9

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC, Incl 27

1шт.

10

84259489

1-5/16" - 12 JIC x -16 Female Quick Lok

ADAPTER,1-5/16" - 12 JIC x -16 Female Quick Lok

1шт.

11

84278071

Assembly

HYDRAULIC OIL FILTER

1шт.

See Figure 35.300.BP For Service Parts

1шт.

12

84310719

Loader Valve Drain

RIGID TUBE

1шт.

13

84310722

Loader Valve Drain

RIGID TUBE

1шт.

14

84344914

Hydraulic Filter Return Line

RIGID TUBE

1шт.

15

84536948

RIGID TUBE

Case Drain Manifold

1шт.

16

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

17

86513068

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24, Pipe

Incl 27

1шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

19

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

87455867

FUNNEL

Oil Filter

1шт.

21

87642915

CABLE TIE,198mm L

8", Nylon

1шт.

22

87655042

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

23

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

2шт.

24

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8.8, ZND

3шт.

25

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Top Clamp

2шт.

26

84344911

Tandem Pump Return

RIGID TUBE

1шт.

27

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16" ORB

5шт.
