Запчасти Case IH SR220 (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS

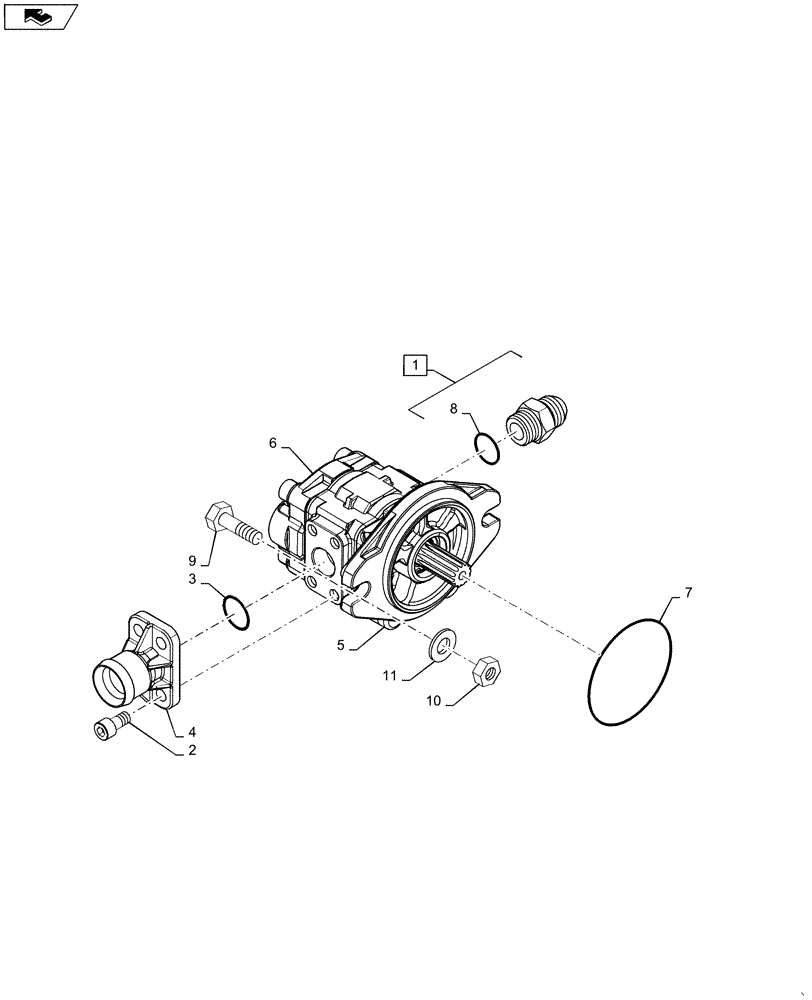

Схема запчастей Case IH SR220 - (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS
6
8
home
11
5
7
1
2
3
9
10
4

Артикул

Название

Примечание

Количество

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 8

1шт.

2

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

3

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

4

84561027

Gear Pump Suction

FITTING

1шт.

5

84572269

PUMP,36.6 CC

Gear, Standard, 36CC

1шт.

6

84389261

Standard Gear Pump, 36CC

SEAL KIT

1шт.

7

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

Gear Pump Mounting

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

9706693

BOLT,M12 x 60mm, Cl 8.8

Gear Pump Mounting

2шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

Gear Pump Mounting

2шт.

11

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

Gear Pump Mounting

2шт.

Выбрано товаров: 11
