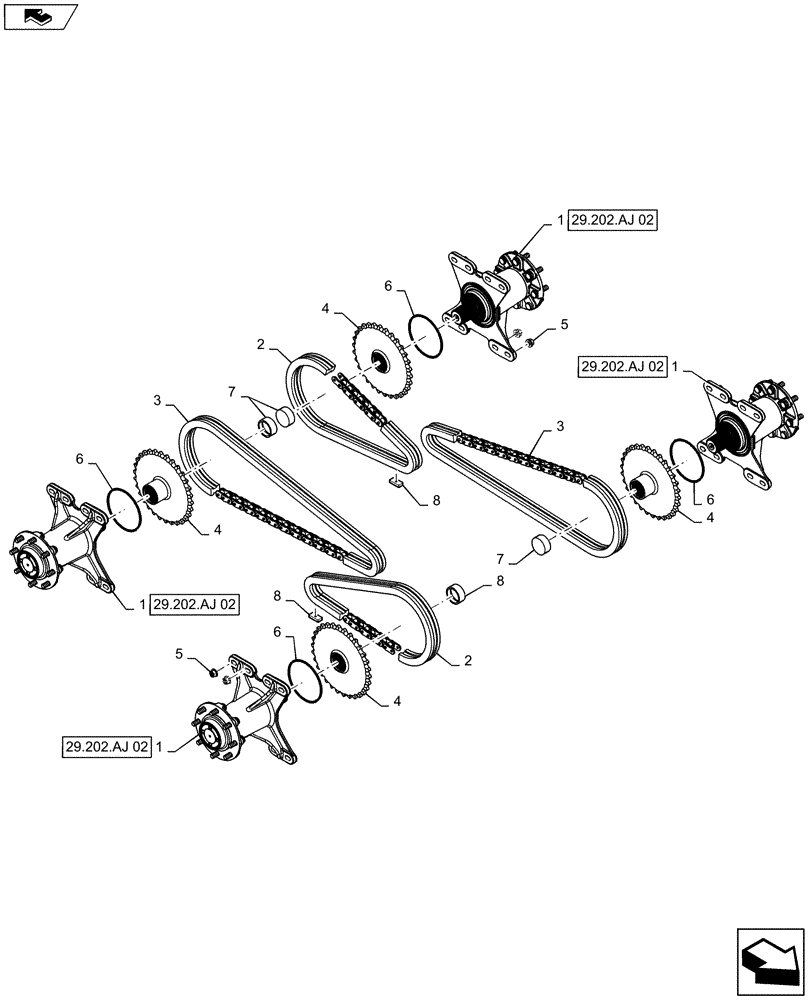

Запчасти Case IH SR220 (29.202.AJ[01]) - POWER TRAIN (29) - HYDROSTATIC DRIVE

1

84596294

Planetary, HD, Years: -02-OCT-16

4WD AXLE ASSY

4шт.

1

48024992

Planetary, HD, Gray, Start Year: 03-OCT-16

AXLE

4шт.

2

84200822

100/50P

CHAIN,RC100, 50 Links x 31.75mm = 1587.5mm L

2шт.

3

84200823

100/74P

CHAIN,RC100, 74 Links x 31.75mm = 2349.5mm L

2шт.

4

84259684

30 Tooth

DRIVEN SPROCKET,30T

4шт.

5

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

6

70923606

O-RING,-439, 70 Duro, 6.475" ID x .275" Thk

4шт.

7

84589479

BUMPER,71.9mm OD x 29.6mm Thk

Nylon

4шт.

8

328955A1

MAGNET,22.23mm W x 47.63mm L x 9.91mm Thk

48mm x 22mm x 10mm,

2шт.
