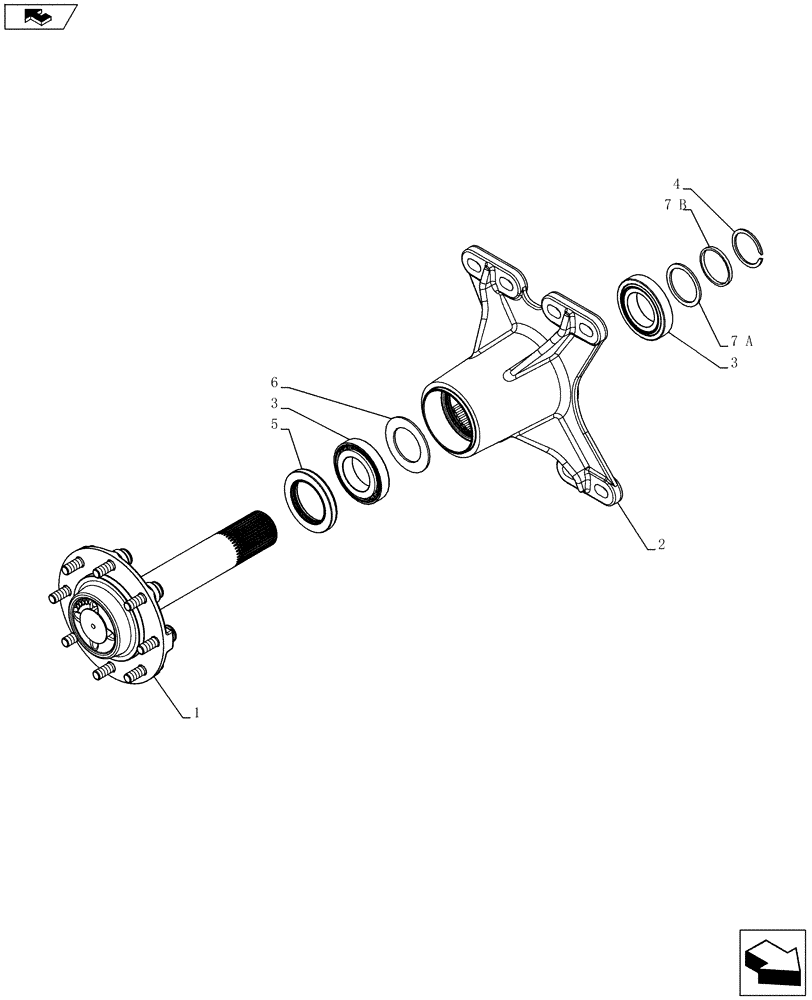

Запчасти Case IH SR220 (25.450.AA) - AXLE ASSY, HD (SR200-SV300) (25) - FRONT AXLE SYSTEM

1

84354076

HD Axle, Incl. Ref. 8

AXLE

1шт.

2

84354066

HD, CE Gray

AXLE HOUSING

1шт.

3

496536C1

TAPERED BEARING,61.91mm ID x 110mm OD x 22mm W

RLR TPR, TM#392-394A

2шт.

4

84239398

Ext. Heavy, 61.9MM Shaft

SNAP RING,M61.9, Ext

1шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Axle

1шт.

6

84356906

63.00 X 98.90 X 3.20

DISC,63mm ID x 99.25mm OD x 3.2mm Thk

1шт.

7a

84393418

62.25 X 69 X 5.3/Use one 7A

SPACER,62.25mm ID x 69mm OD x 5.3mm L

1шт.

7a

84393419

62.25 X 69 X 5.8/Use one 7A

SPACER,62.5mm ID x 69mm OD x 5.8mm L

1шт.

7a

84393420

62.25 X 69 X 6.3/Use one 7A

SPACER,62.5mm ID x 69mm OD x 6.3mm L

1шт.

7a

84393421

62.25 X 69 X 6.8/Use one 7A

SPACER,62.25mm ID x 69mm OD x 6.8mm L

1шт.

7b

84404996

Shim, 61.94 Shft, 1.6 T/Use one 7B

SHIM,62.25mm ID x 76.2mm OD x 1.58mm Thk

1шт.

7b

84405003

Shim, 61.94 Shft, 1.7 T/Use one 7B

SHIM,62.25mm ID x 76.2mm OD x 1.68mm Thk

1шт.

7b

84393466

Shim, 61.94 Shft, 1.8 T/Use one 7B

SHIM,62.25mm ID x 76.2mm OD x 1.78mm Thk

1шт.

7b

84393470

Shim, 61.94 Shft, 1.9 T/Use one 7B

SHIM,62.25mm ID x 76.2mm OD x 1.88mm Thk

1шт.

7b

84393472

Shim, 61.94 Shft, 2.0 T/Use one 7B

SHIM,62.25mm ID x 76.2mm OD x 1.98mm Thk

1шт.

8

84249319

Wheel, M16 X 2 X 60

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

8шт.

9

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16 X 2, 90 Degree Taper (Not Shown)

32шт.

9

86512498

FLANGE NUT,M16 x 2, Cl 10

(Not Shown)

32шт.
