Запчасти Case IH SR220 (10.400.BE[01]) - RADIATOR & COOLER, LINES (SR220-SV300,TR320,TV380) (10) - ENGINE

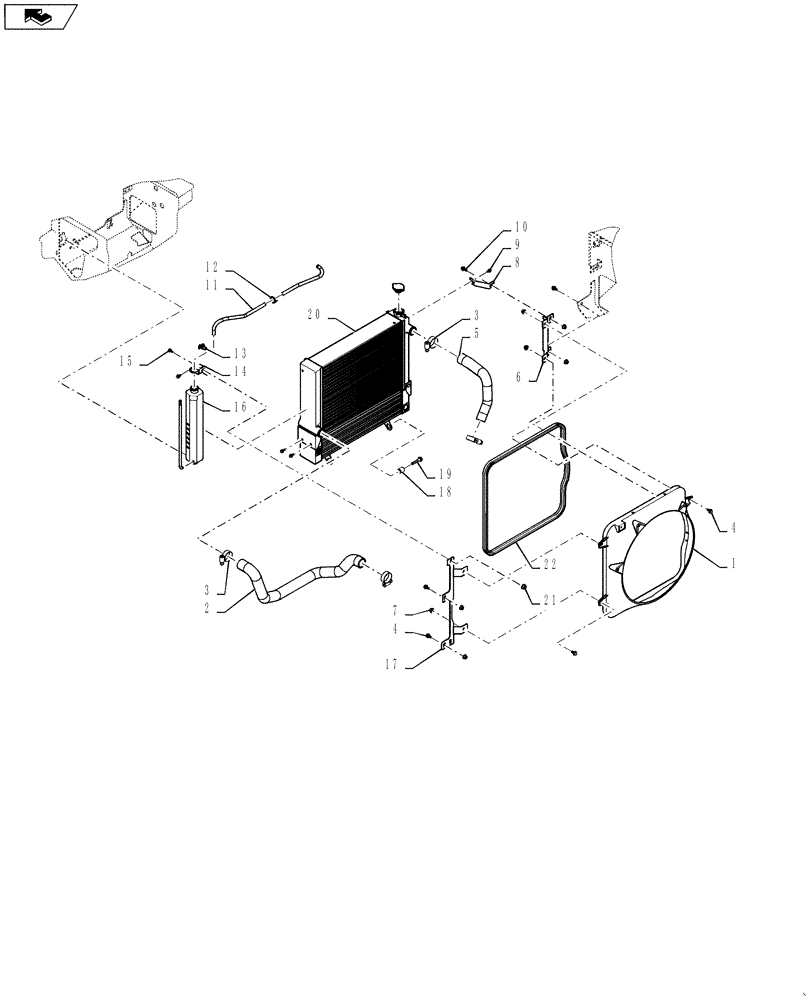

Схема запчастей Case IH SR220 - (10.400.BE[01]) - RADIATOR & COOLER, LINES (SR220-SV300,TR320,TV380) (10) - ENGINE
6
14
9
3
22
20
4
18
5
home
21
4
11
3
8
19
16
7
13
2
17
15
1
10
12

Артикул

Название

Примечание

Количество

1

84412503

Fan

SHROUD

1шт.

2

84277824

HOSE,45mm ID, SAE 20R4

Coolant, Lower

1шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

4

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

7шт.

5

84277825

Coolant, Upper

HOSE

1шт.

6

84259397

Fan Shroud, LH

BRACKET

1шт.

7

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

8

84259564

Radiator Mount

BRACKET

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

11

84268809

Coolant Recovery

HOSE,7.9mm ID x 870mm L

1шт.

12

84259663

CABLE TIE,228.6mm L, Nylon, Black

Tie

2шт.

13

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain

1шт.

14

84254071

Coolant Bottle, Upper

BRACKET

1шт.

15

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

87020980

BOTTLE,2L

Container, Years: -31-JUL-13

1шт.

16

47490003

BOTTLE

Coolant Recovery, Start Year: 01-AUG-13

1шт.

Cap P/N 257884A1, Comes With Bottle

1шт.

17

84259396

Fan Shroud, RH

BRACKET

1шт.

18

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge, Pivot

2шт.

19

87301277

BOLT,M12 x 71.8mm, Cl 10.9

M12 X 60

2шт.

20

84201143

Radiator and Cooling, Large

MODULE

1шт.

84201143 Breakdown - 10.406.01

1шт.

21

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

22

84268743

Bulb

RUBBER SEAL,2280mm L

1шт.

Выбрано товаров: 25
