(10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504154680)

Запчасти Case IH SR220 (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504154680) (10) - ENGINE

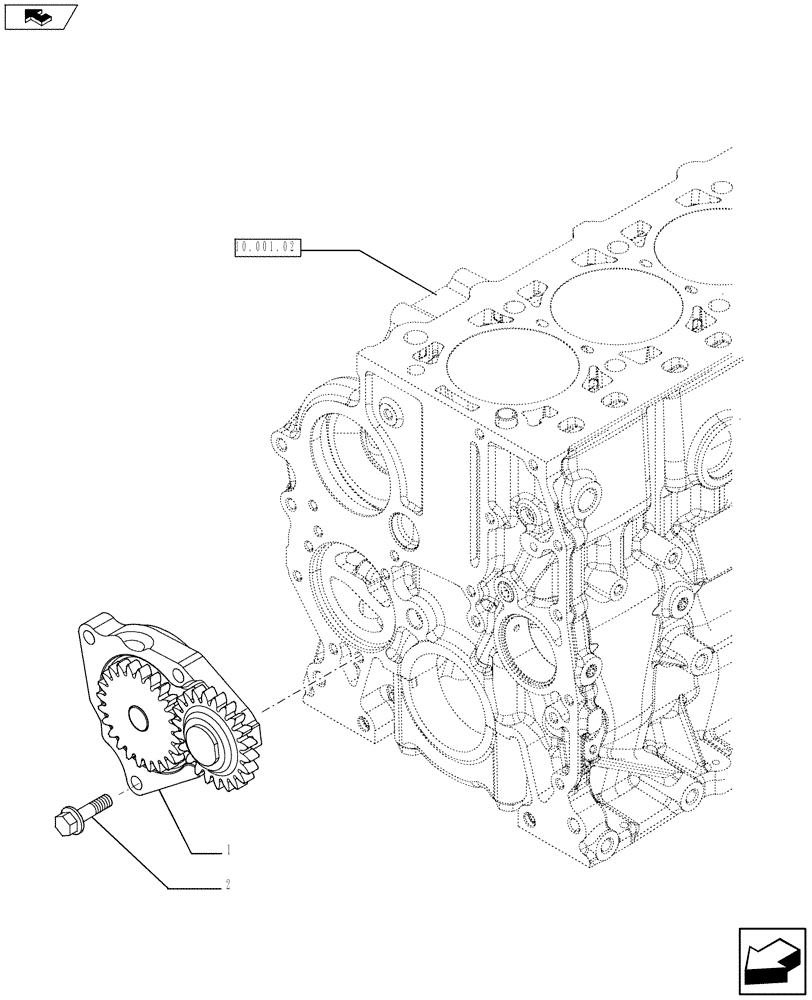

Схема запчастей Case IH SR220 - (10.304.01[01]) - PUMP, ENGINE OIL & RELATED PARTS (504154680) (10) - ENGINE
1
10.001.02
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504241684

ENGINE OIL PUMP

O.M.P

1шт.

1

504258833

ENGINE OIL PUMP

AUTOLEC

1шт.

2

4794007

SCREW,M22 x 103mm

3шт.

Выбрано товаров: 3
