Запчасти Case IH SR220 (10.202.AD) - ENGINE, EXHAUST SYSTEM LRG R (SR220,SR250,TR320) (10) - ENGINE

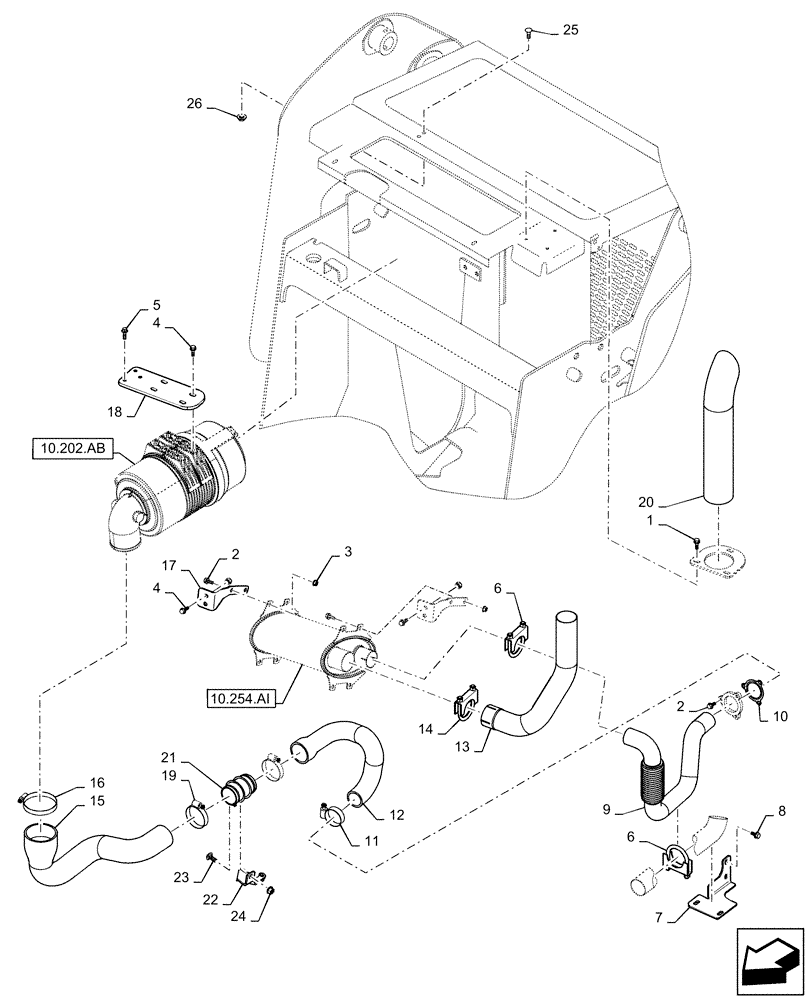

Схема запчастей Case IH SR220 - (10.202.AD) - ENGINE, EXHAUST SYSTEM LRG R (SR220,SR250,TR320) (10) - ENGINE
14
6
26
4
25
5
6
8
24
20
1
19
15
4
22
12
16
2
17
11
9
10
2
21
18
3
23
7
13
10.202.ab
10.254.ai

Артикул

Название

Примечание

Количество

1

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

5

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

6

84588569

CLAMP,54mm ID, Muffler

2шт.

7

84414896

Exhaust Support

BRACKET

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

9

84287189

AIR INTAKE TUBE

Exhaust Flexible

1шт.

10

87611895

GASKET,0.4mm Thk

Muffler

1шт.

11

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

12

84335246

Coupler To Turbo

TUBE

1шт.

13

84304628

Exhaust Tailpipe

EXHAUST SYSTEM PIPE

1шт.

14

47541188

CLAMP,68mm ID, Muffler

Muffler

1шт.

15

84309364

Air Cleaner To Coupler

A/C HOSE

1шт.

16

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

17

84365609

MOUNTING PLATE

Muffler

2шт.

18

84309365

BRACKET

Air Cleaner Radial

1шт.

19

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

20

84495949

EXTENSION

Exhaust Stack

1шт.

21

84198602

PIPE COUPLING,60mm OD x 93mm OAL

Intake Hose

1шт.

22

87471945

BRACKET

Air Cleaner Coupler

1шт.

23

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

25

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

26

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 26
