Запчасти Case IH SR220 (90.160.AX[02]) - CAB HEADLINER, WITH RADIO (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

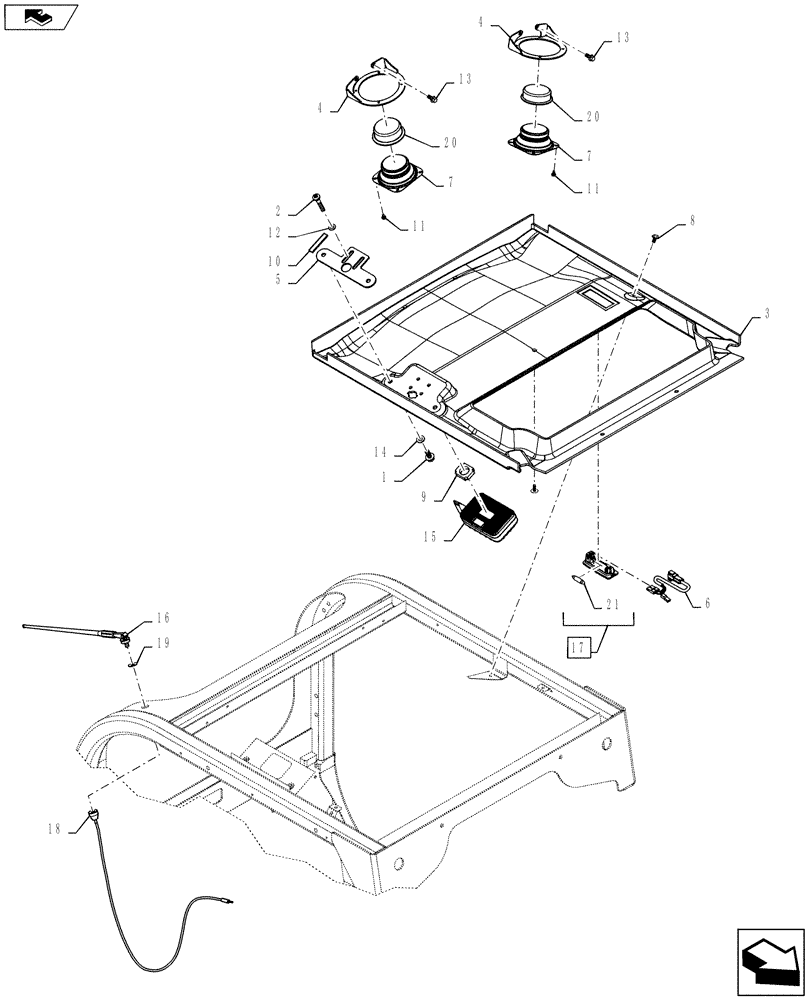

Схема запчастей Case IH SR220 - (90.160.AX[02]) - CAB HEADLINER, WITH RADIO (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
13
18
1
7
14
2
8
13
21
16
3
10
17
12
20
home
11
15
7
5
4
20
4
9
6
11

Артикул

Название

Примечание

Количество

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

2

13272611

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

4шт.

3

47422467

Headliner, With Radio And Dome Light

PANEL

1шт.

4

84552202

BRACKET

Speaker

2шт.

5

84281708

BRACKET

Radio

1шт.

6

84297137

WIRE HARNESS

Dome Light

1шт.

7

84298557

SPEAKER

4", Sealed

2шт.

8

84318533

Push-In, Wheat

FASTENER

6шт.

9

84363241

SPACER,25mm ID

Radio, Cooling

1шт.

10

84544405

Cut To Length Of 90mm

TRIM

1шт.

11

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

8шт.

12

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

13

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

4шт.

14

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

2шт.

15

87672223

RADIO,WB/AM/FM/XM/AUX

AM/FM/XM/WB

1шт.

16

197745A1

ANTENNA

Radio

1шт.

17

1983391C1

LAMP,12V, 10W

Dome, Incl 21

1шт.

18

381659A1

ELECTRIC CABLE

Antenna

1шт.

19

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

Nylon

1шт.

20

47451533

Speaker Covers

FOAM

2шт.

21

E35556

BULB,12V, 10W

1шт.

Выбрано товаров: 21
