Запчасти Case IH SR220 (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

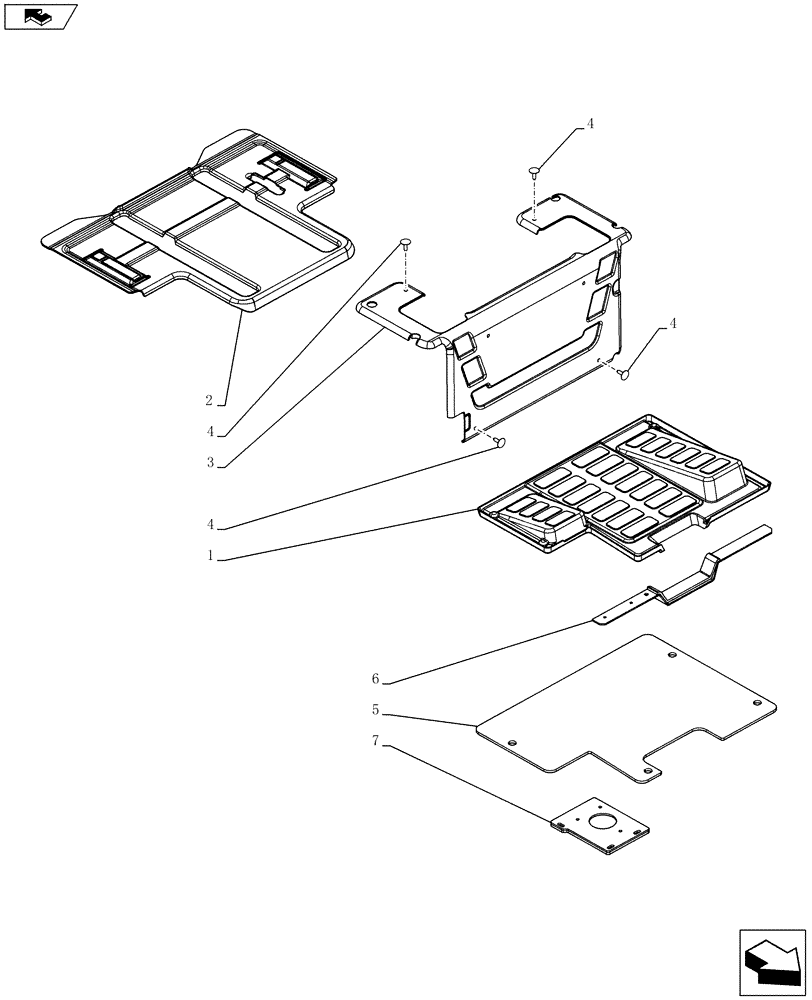

Схема запчастей Case IH SR220 - (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
4
1
3
5
2
home
4
4
7

Артикул

Название

Примечание

Количество

1

84259690

Trim

FLOOR MAT

1шт.

2

84259693

Seat Pan, Mechanical

FLOOR MAT

1шт.

3

84397559

Heel Plate, Mechanical

MAT

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

Push-In

6шт.

5

84372627

No Pedal Floor Plate

FOAM

1шт.

6

84372707

FOAM

Front Door Plate

1шт.

7

84372630

Foot Throttle

FOAM

1шт.

Выбрано товаров: 7
