Запчасти Case IH SR220 (90.156.AZ[02]) - LH CAB WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

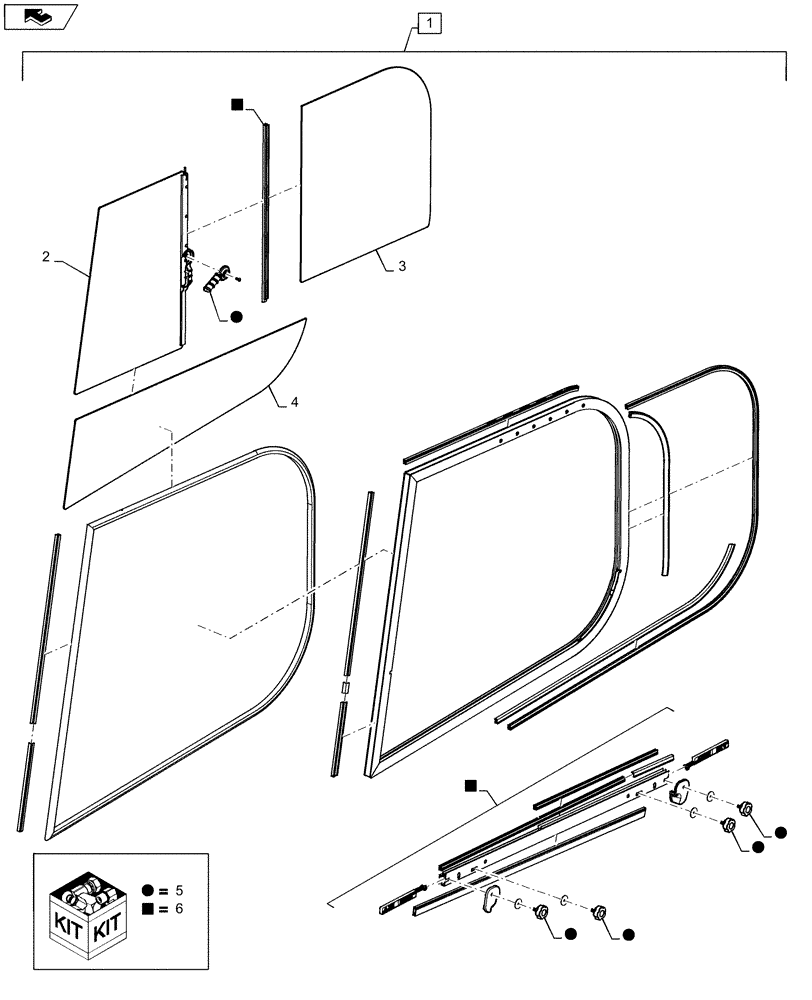

Схема запчастей Case IH SR220 - (90.156.AZ[02]) - LH CAB WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
5
6
2
5
4
home
5
5
3
5
1
6
6
6
5

Артикул

Название

Примечание

Количество

1

84488998

WINDOW

LH Cab, Complete Assembly, Incl 2 - 6

1шт.

2

84308873

CAB GLASS ASSY

Sliding, LH

1шт.

Includes Handle Assembly

1шт.

3

84308876

WINDOW

Side Glass, Top, Fixed

1шт.

4

84308877

WINDOW

Side Glass, Bottom, Fixed

1шт.

5

84486991

KIT

LH Window Hardware

1шт.

Includes Window Handle, Lower Corner Caps and 4 Knobs

1шт.

6

84486993

KIT

LH Window Center Bar

1шт.

Includes Center Bar Assembly and Center Bar Seal

1шт.

Выбрано товаров: 9
