Запчасти Case IH SR220 (90.151.AD[03]) - LAP BAR (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

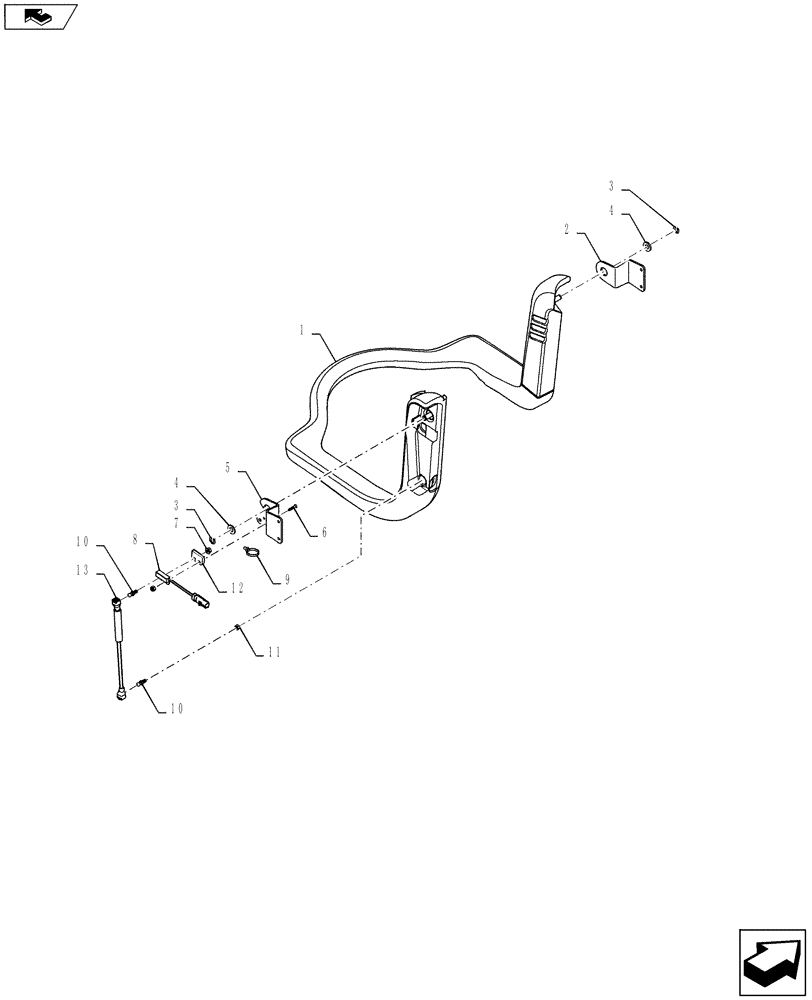

Схема запчастей Case IH SR220 - (90.151.AD[03]) - LAP BAR (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
12
7
10
3
11
6
4
3
10
1
2
home
5
4
9
8

Артикул

Название

Примечание

Количество

1

84201339

BAR

Bar, Coating

1шт.

2

84239191

PIVOT BRACKET Seat Bar, RH

BRACKET, PIVOT

1шт.

Hardware To Install 84305556 Bolt, 84272827 Rivet Nut

1шт.

3

D143415

SNAP RING,0.50” ID, Klipring

2шт.

4

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

5

84239192

PIVOT BRACKET Seat Bar, LH

BRACKET, PIVOT

1шт.

Hardware To Install 84305556 Bolt, 84272827 Rivet Nut

1шт.

6

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

2шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

87392235

SENSOR

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

Assy, Fir Tree

1шт.

10

189609A1

BALL STUD,M8 x 1.25

Ball, M8x1.25

2шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

13

84371064

GAS STRUT,180mm Extended, 148.74mm Compressed

Lap Bar Assist

1шт.

Выбрано товаров: 15
