Запчасти Case IH SR220 (90.100.BI[02]) - REAR HOOD AND CHASSIS ACCESS COVERS, AFTER APRIL 15, 2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

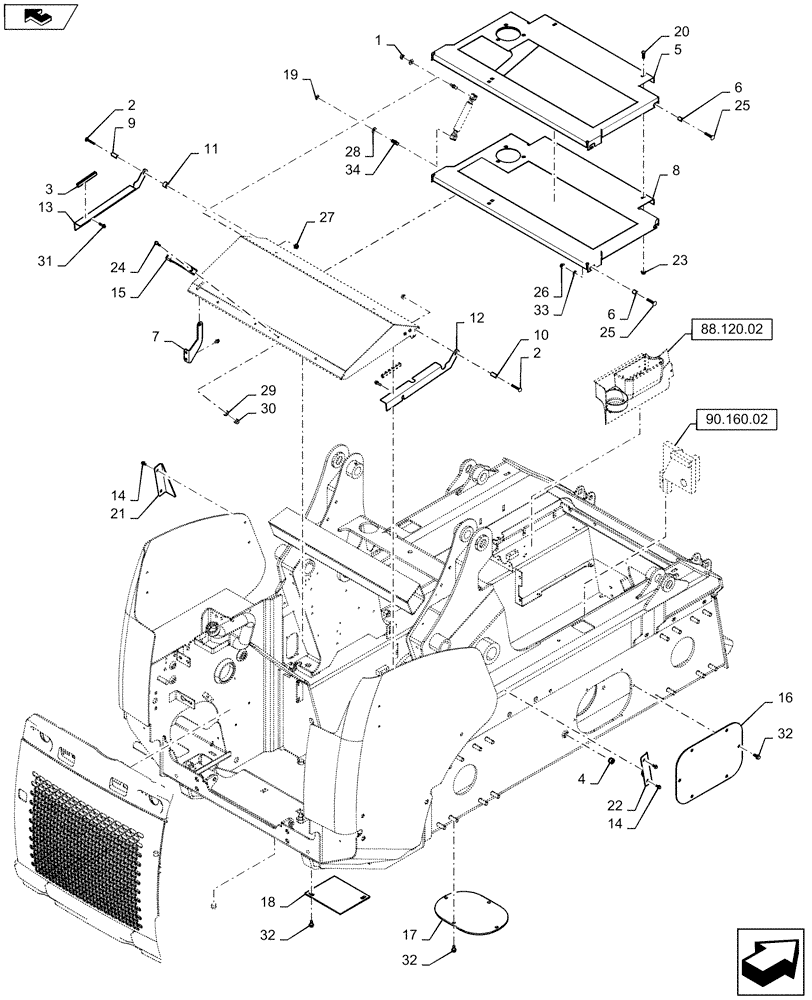

Схема запчастей Case IH SR220 - (90.100.BI[02]) - REAR HOOD AND CHASSIS ACCESS COVERS, AFTER APRIL 15, 2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
20
88.120.02
27
32
24
22
25
31
29
2
13
25
11
21
4
26
30
2
14
32
home
6
9
6
1
28
33
16
19
8
23
10
5
18
12
7
34
90.160.02
15
17
32
3

Артикул

Название

Примечание

Количество

1

43362

NUT,M8 x 1.25, Cl 10

1шт.

2

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

3

291186

PROTECTION STRIP,9.9mm W

Channel Edge

1шт.

4

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

5

47435698

Exhaust Stck Stiffener

PLATE

1шт.

6

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

4шт.

7

47467486

Hood Lock Tab

ANGLE

1шт.

8

47492775

Rear Deck

PANEL

1шт.

9

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

10

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

11

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

12

47543188

Hood Stop

ANGLE

1шт.

13

47555294

Hood Stop

ANGLE

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

15

406256A1

HANDLE

Rear Hood

1шт.

16

84295151

Hood and Covers

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

17

84299800

COVER PLATE

1шт.

18

84299809

Plumbing Access

COVER PLATE

1шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

20

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

21

84354589

Chassis, LH

COVER PLATE

1шт.

22

84354590

Chassis, RH

COVER PLATE

1шт.

23

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

25

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

4шт.

26

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

27

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

28

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

29

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

30

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

31

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

32

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

33

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

34

189609A1

BALL STUD,M8 x 1.25

2шт.

Выбрано товаров: 34
