Запчасти Case IH SR220 (90.100.AU) - HOODS AND COVERS, SR220, BSN NCM457309 (90) - PLATFORM, CAB, BODYWORK AND DECALS

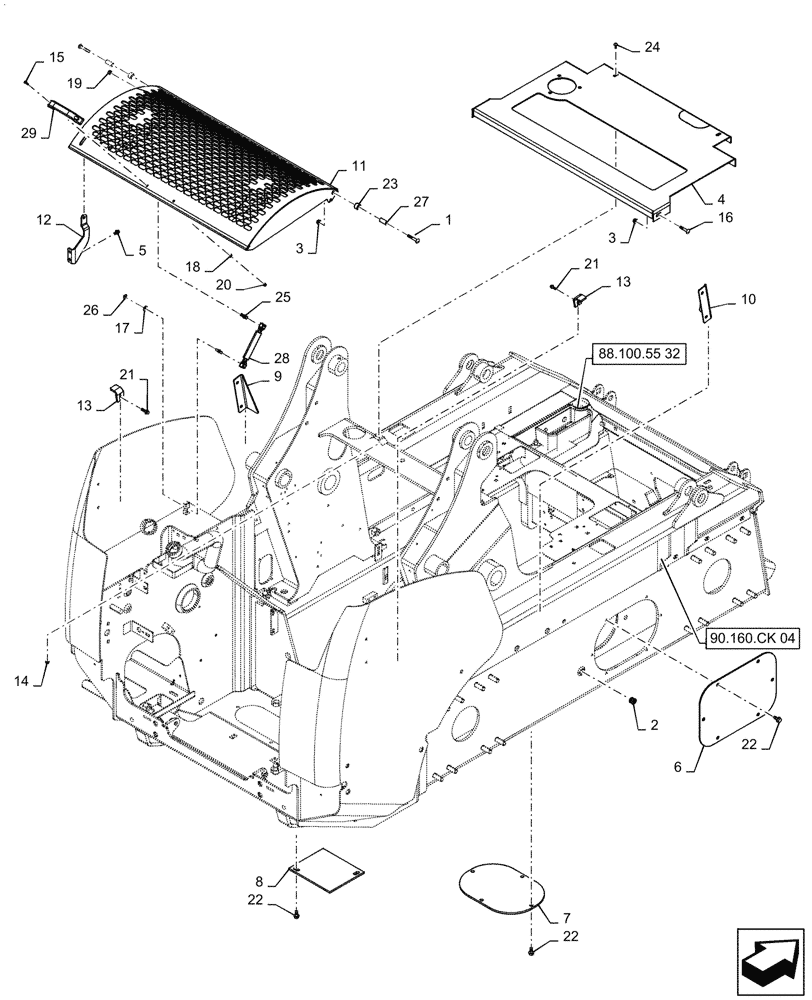

Схема запчастей Case IH SR220 - (90.100.AU) - HOODS AND COVERS, SR220, BSN NCM457309 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ck 04
17
13
11
5
28
20
22
2
7
13
14
29
15
22
26
24
19
1
25
3
8
10
4
18
12
22
9
16
6
21
21
23
27
3
88.100.55 32

Артикул

Название

Примечание

Количество

1

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

2

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

84201350

Rear Deck

PANEL

1шт.

5

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

6

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

7

84299800

Gray

COVER PLATE

1шт.

8

84299809

Plumbing Access

COVER PLATE

1шт.

9

84354589

LH Chassis

COVER PLATE

1шт.

10

84354590

RH Chassis

COVER PLATE

1шт.

11

84371087

Tilt

HOOD

1шт.

12

84405254

Angle

LOCKING TAB

1шт.

13

84420534

Angle, Hood

STOP

2шт.

14

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

15

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

16

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

18

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

20

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

21

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

22

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

23

87429698

SPACER

Hood Tab

2шт.

24

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

25

189609A1

BALL STUD,M8 x 1.25

2шт.

26

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

27

259905A1

SPACER

Hood Hinge

2шт.

28

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

29

406256A1

HANDLE

Rear Hood

1шт.

Выбрано товаров: 29
