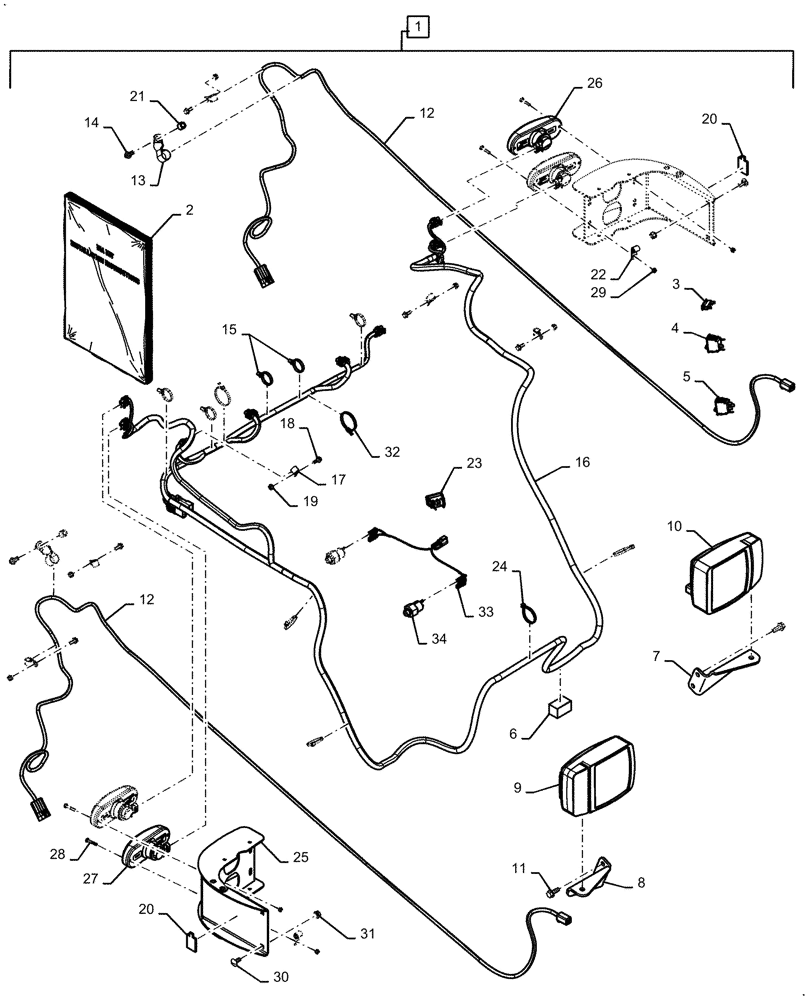

Запчасти Case IH SR220 (88.100.55[09]) - DIA KIT, ROAD LIGHTS (88) - ACCESSORIES

1

48122811

Road Lights Case Rad

KIT

1шт.

2

48122812

Sheet

INSTRUCTION

1шт.

3

86604657

INDICATOR, TURN SIGN

1шт.

4

87634133

SWITCH

Hazard Lights

1шт.

5

84263153

SWITCH

Loader Lockout

1шт.

6

9821783

FLASHER UNIT

1шт.

7

84306583

BRACKET

Light LH Tan

1шт.

8

84306585

BRACKET

Light RH Tan

1шт.

9

87572859

LAMP

Light Combination Right

1шт.

10

87572860

LAMP

Light Combination Left

1шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

12

84262451

FE Boom RD

WIRE HARNESS

2шт.

13

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

2шт.

14

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

16

84262455

Rear Road Jumper Case

WIRE HARNESS

1шт.

17

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

6шт.

18

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

20

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

21

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

22

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

23

131691A1

ROCKER SWITCH

Front & Rear Coupler

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

25

47870827

BRACKET

RR Road Light Power Tan

2шт.

26

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

27

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn/SMV

2шт.

28

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

29

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

30

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

31

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

32

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

33

47972154

JUMPER

Pressure Switch

1шт.

34

84155716

PRESSURE SWITCH

2шт.
