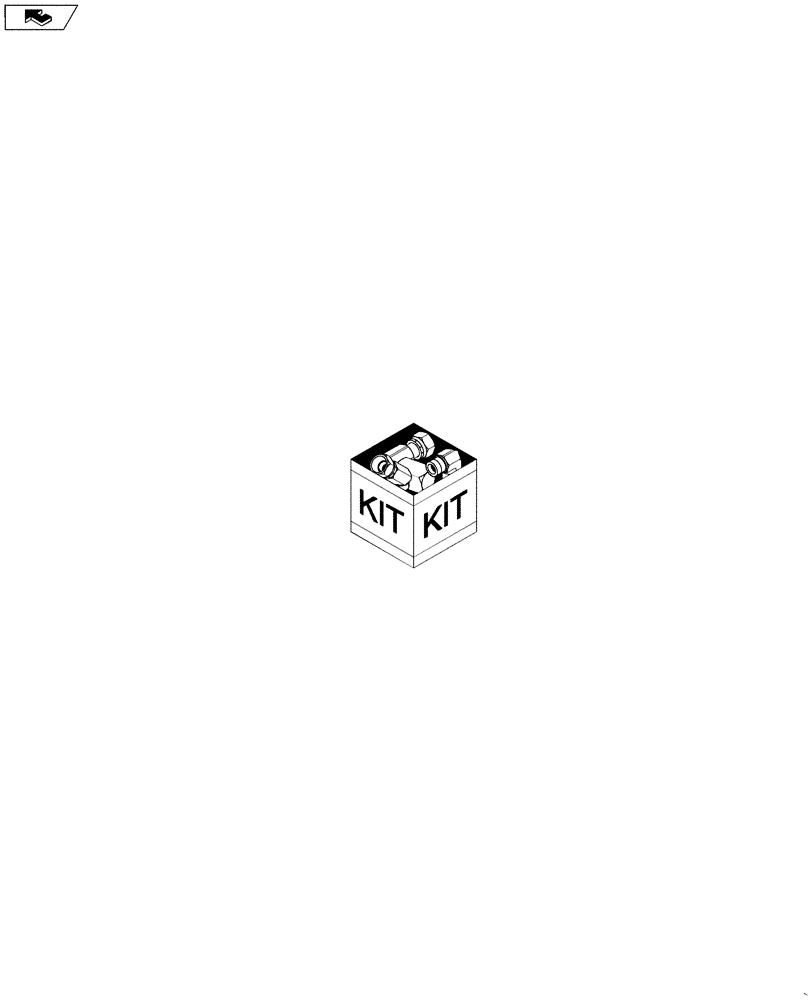

Запчасти Case IH SR220 (88.100.35[13]) - DIA KIT, HIGH FLOW AUX - LG RAD (SR220,SR250,TR320) (88) - ACCESSORIES

84389675

DIA Kit, High Flow Aux, LG Rad, Incl. 1-48

KIT

1шт.

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Adapter, 3/4-16

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

84186155

Assembly, High Flow Valve to LDR Valve

TUBE

1шт.

9

84251427

SWITCH

Rocker, High Flow

1шт.

10

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

11

84322565

Assembly, Aux High Flow, LDR Valve to LFT Arm

HYD TUBE

1шт.

12

84323950

Assembly, Aux High Flow, LDR Valve to LFT Arm

HYD TUBE

1шт.

13

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

14

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

15

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

16

87017999

SUPPORT

Hydraulic Tube

2шт.

17

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

18

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar

2шт.

21

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

22

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

23

84256249

34.1/18.3cc, Gear

PUMP,34.1 CC

1шт.

24

84291250

HOSE ASSY.,19mm ID x 1070mm OAL

Valve Supply

1шт.

25

84383953

HOSE ASSY.

Valve Supply

1шт.

26

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

Assembly, High Flow, Supply

1шт.

27

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

28

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

29

84254045

CLAMP,66mm L

Tube

4шт.

30

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee Adj -12 ORB

2шт.

31

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female, Quick Coupler

1шт.

32

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male, Quick Coupler

1шт.

33

84259689

Quick Attach, High Flow

VALVE

1шт.

34

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

35

84306937

COVER PLATE

Hydraulic, Tan

1шт.

36

84322579

Assembly, High Flow, Male

HYD TUBE

1шт.

37

84322581

Assembly, High Flow, Aux

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

1шт.

38

84322582

Assembly, High Flow, Female

HYD TUBE

1шт.

39

84322584

Assembly, High Flow, Aux

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

1шт.

40

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3

3шт.

41

84338474

Assembly, Case Drain

HYD TUBE

1шт.

42

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

43

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

44

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

45

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75

2шт.

46

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

47

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

48

84487889

Sheet, High Flow Aux, LG Rad

INSTRUCTION

1шт.
