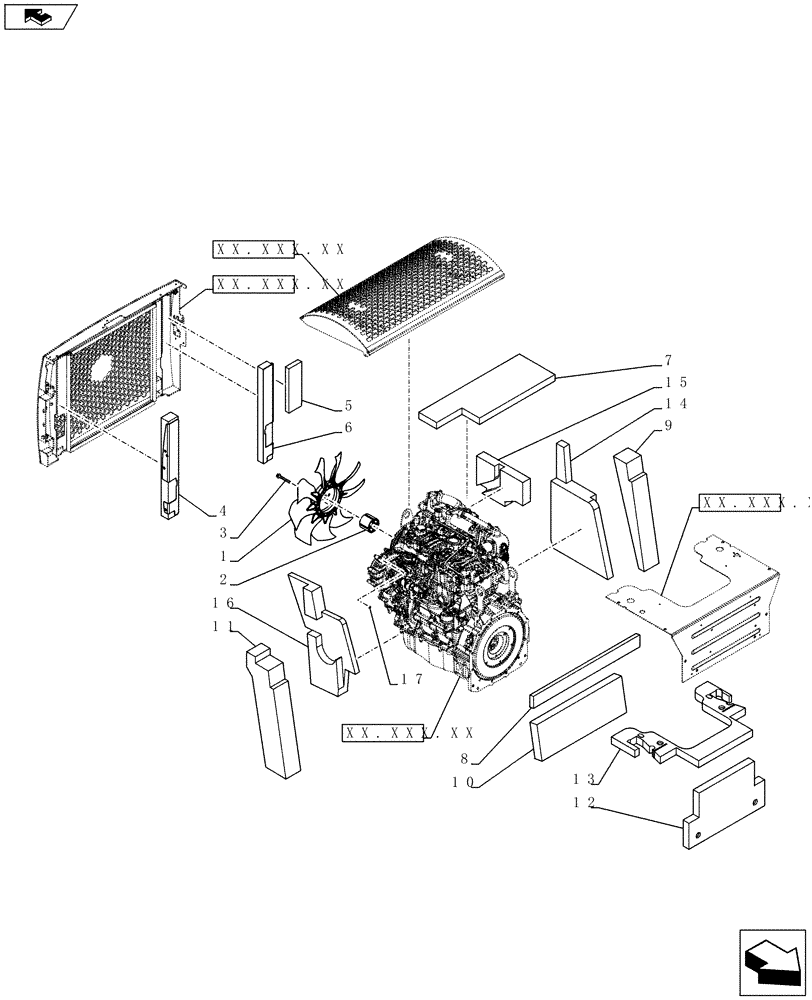

Запчасти Case IH SR220 (88.100.10[18]) - ENGINE ACCESSORIES EU/OPEN EU W/SOUND (SR220,SR250) (88) - ACCESSORIES

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher

1шт.

2

84373345

Fan 32/33 MM

SPACER

1шт.

3

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan RH

1шт.

5

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

6

84372981

FOAM INSULATION

Fan

1шт.

7

84373796

Hood

FOAM INSULATION

1шт.

8

84362125

Crossmember, used only with Open Cab

FOAM INSULATION

1шт.

9

84366338

LH Tower Front, Years: -13-JUL-15

FOAM INSULATION

1шт.

9

47886440

LH Tower Front, Start Year: 14-JUL-15

INSULATION

1шт.

10

84366337

Pad, Right Tower

FOAM INSULATION

1шт.

11

84366336

Chassis Front LH

FOAM INSULATION

1шт.

12

84366353

Heel Plate Horizontal

FOAM INSULATION

1шт.

13

84366352

Heel Plate Vertical

FOAM INSULATION

1шт.

14

84366339

LH Tower Mid

FOAM INSULATION

1шт.

15

84366341

LH Tower RR

FOAM INSULATION

1шт.

16

84366337

RH Tower Front

FOAM INSULATION

1шт.

17

87461957

STOP

Stop

1шт.

18

87595771

Pad, Not Illustrated

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

Not Illustrated

2шт.

20

84372040

FOAM

Seat Pan, used only with Open Cab, Not Illustrated

1шт.
