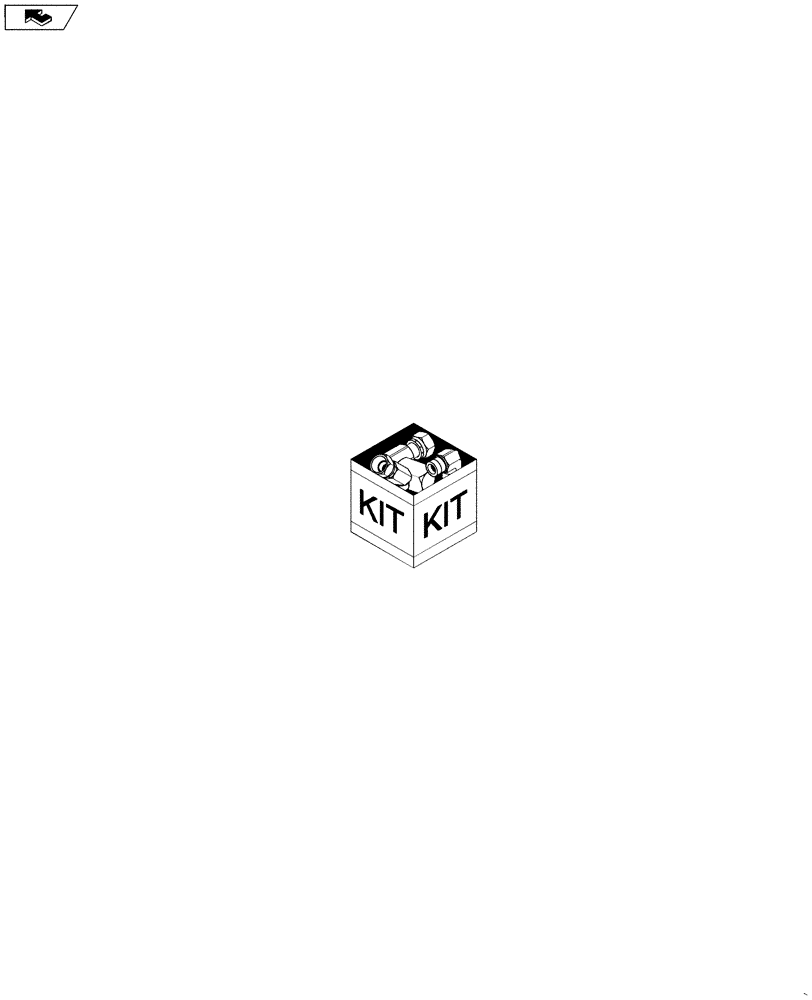

Запчасти Case IH SR220 (88.100.10[06]) - DIA KIT, ASPIRATOR (SR220,SR250,TR320) (88) - ACCESSORIES

84488604

SERVICE KIT

DIA Kit, Aspirator, Incl. 1-12

1шт.

1

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

84137995

HOSE CLAMP,SAE #36 OD

Turn Key Grip

1шт.

6

84314152

Tail, Serial Range: Pipe-Aspirator

HOSE

1шт.

7

84488518

Air, Serial Range: Cleaner-Aspirator

HOSE

1шт.

8

84359084

Exhaust Tail Pipe

RIGID TUBE

1шт.

9

84488516

Aspirator Mounting

BRACKET

1шт.

10

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

1шт.

11

406089A2

VALVE

Aspirator Check

1шт.

12

84488610

Sheet, Aspirator

INSTRUCTION

1шт.
