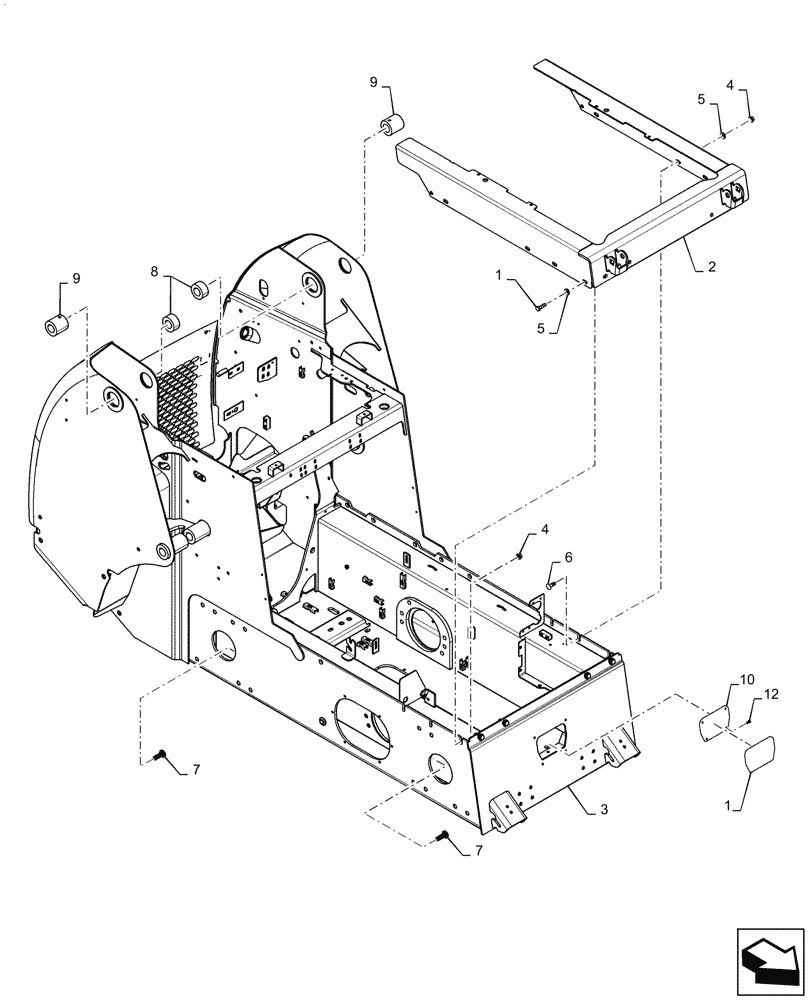

Запчасти Case IH SR220 (39.100.AB[01]) - CHASSIS (SR220, SR250) (39) - FRAMES AND BALLASTING

1

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

11шт.

2

84309634

Upper, Radial, Gray

DRAWBAR FRAME

1шт.

3

84394291

Lower Tan

FRAME

1шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

12шт.

6

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

7

84162937

STUD,M16 x 50mm, Cl 9.8

Axle Mounting

32шт.

8

84201040

Upper Frame to H-Link

HUB

2шт.

9

84331416

Upper Frame to H-Link

HUB

2шт.

10

84322838

PLATE

1шт.

11

84322854

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

1шт.

12

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.
