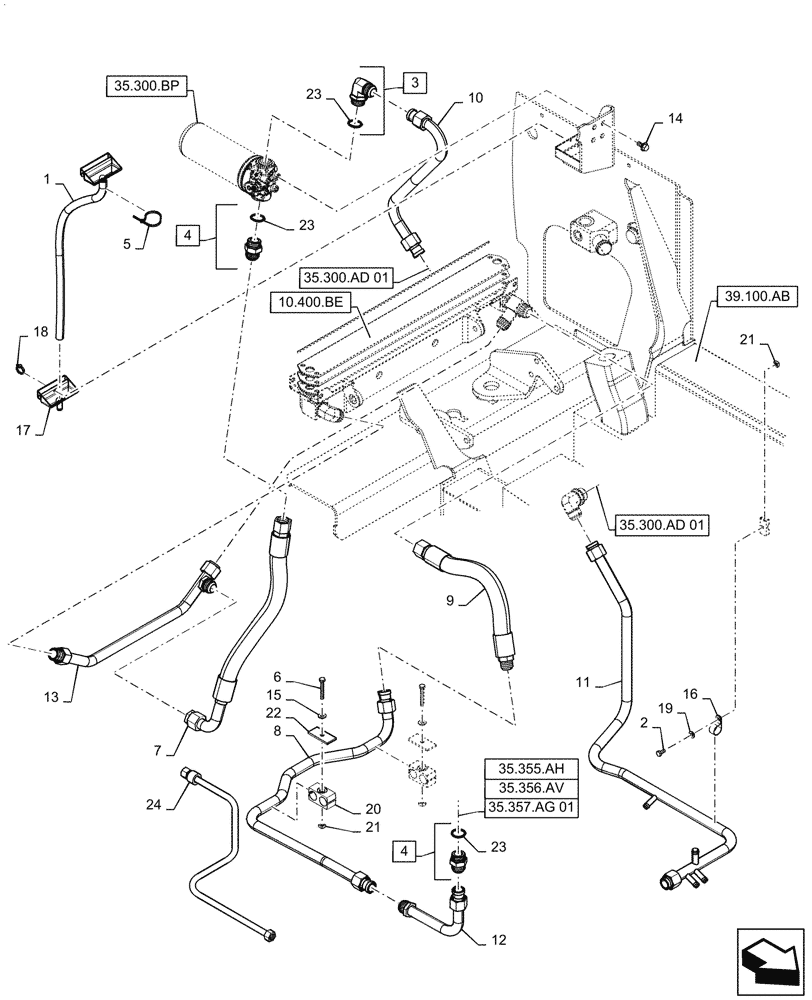

Запчасти Case IH SR210 (35.300.AD[02]) - HYDRAULIC RETURN PLUMBING (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2 ft. L

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 23

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 23

2шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47462048

Oil Cooler Outlet

HYDRAULIC HOSE,25.4mm ID x 665mm L, SAE 100R4

1шт.

8

47539984

Loader Valve Outlet

TUBE

1шт.

Replaced By Ref 24 For Easier Installation

1шт.

9

47539987

Loader Valve Outlet

HOSE,25.4mm ID x 495mm L, SAE 100R4

1шт.

Replaced By Ref 24 For Easier Installation

1шт.

10

47679638

Hydraulic Filter Return

HYD TUBE

1шт.

11

47684509

HYD TUBE

Case Drain Manifold

1шт.

12

84310722

Loader Valve Outlet

RIGID TUBE

1шт.

13

84375905

RIGID TUBE

Oil Cooler Outlet

1шт.

14

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

87455867

FUNNEL

Oil Filter

1шт.

18

87642915

CABLE TIE,198mm L

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

20

225529A1

CLAMP,Dual, 25.4mm ID

Tube

2шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

23

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.

24

47537812

Replaces Ref 8 & 9 For Easier Installation

HOSE

1шт.
