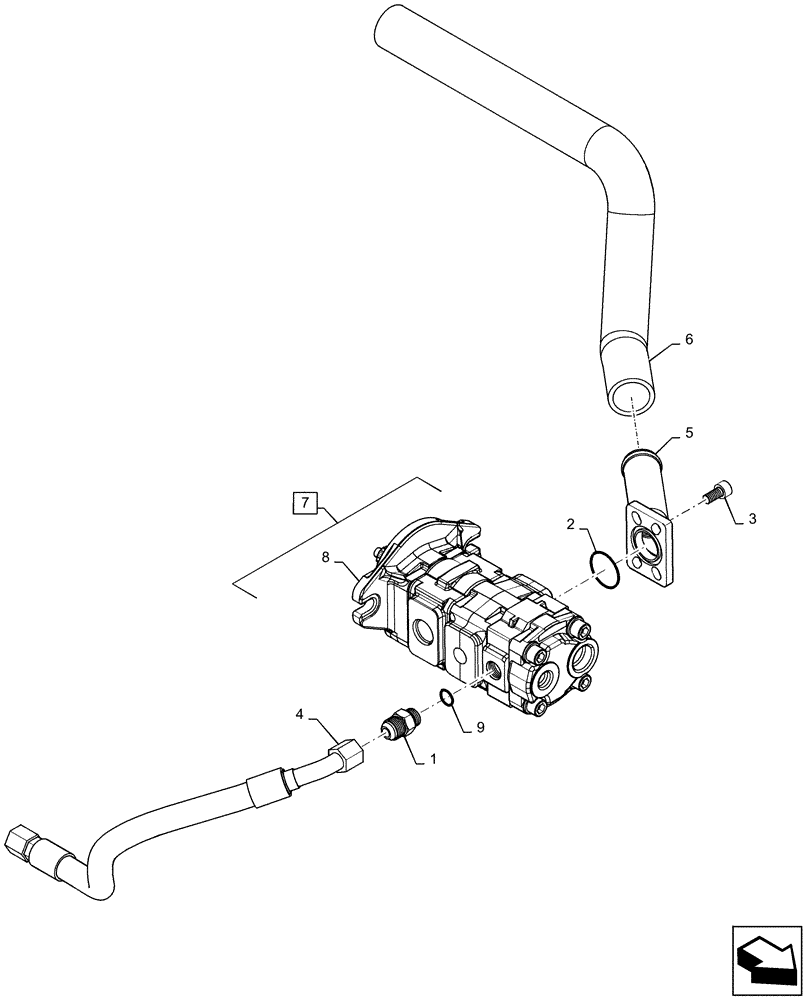

Запчасти Case IH SR210 (35.220.AA[02]) - HIGH FLOW GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 9

1шт.

2

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

3

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

4

84329005

High Flow Supply

HOSE,15.88mm ID x 594mm L, SAE 100R17

1шт.

5

84385861

Gear Pump Suction

ADAPTER

1шт.

6

84387451

Gear Pump Suction, Years: -03-JUN-15

HOSE

1шт.

6

47836898

Gear Pump Suction, Start Year: 04-JUN-15

HOSE

1шт.

7

84602054

HYDRAULIC PUMP

36.3/13.7CC Gear, Incl 8

1шт.

8

84389262

SEAL KIT

Incl in 7

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
