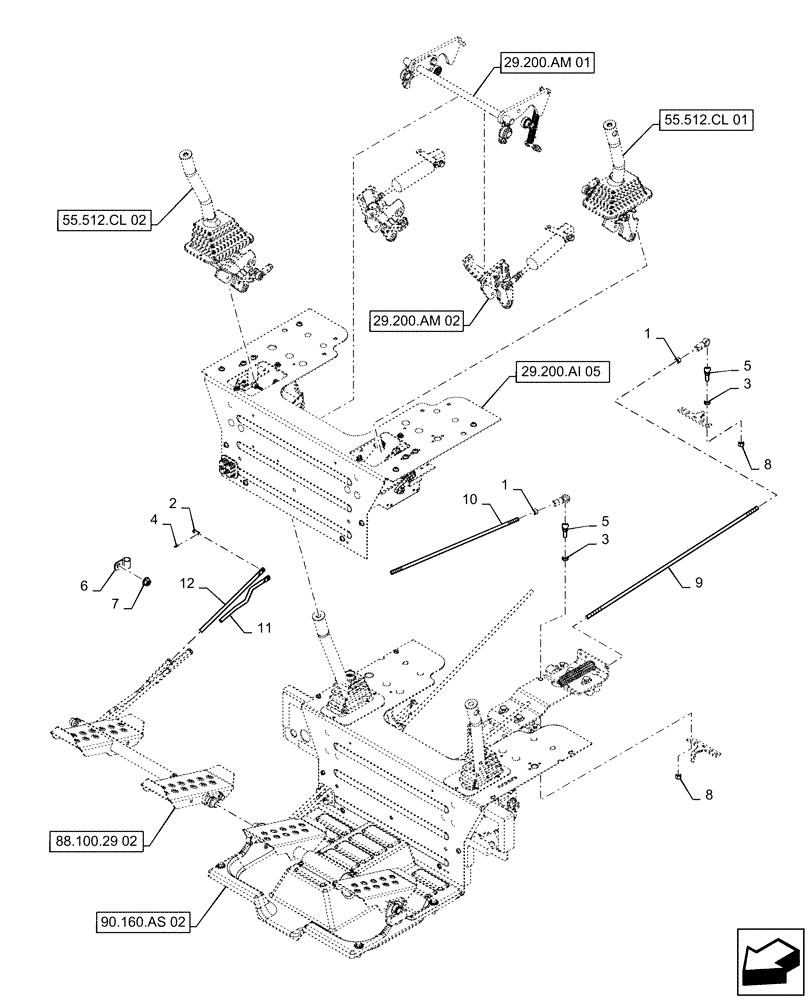

Запчасти Case IH SR210 (29.200.AI[03]) - FOOT CONTROLS MOUNTING ASSEMBLY (29) - HYDROSTATIC DRIVE

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

5

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

Threaded Stud W/ Rod

2шт.

6

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

8

86509310

NUT,3/8" - 24, Gr 5

2шт.

9

84303979

Ground Drive

THREADED ROD,3/8" - 24 x 519mm L

1шт.

10

84303981

Ground Drive

THREADED ROD,3/8" - 24 x 230mm L

1шт.

11

84317960

ROD,M10 x 1.25 x 233.3mm L

Valve Tip

1шт.

12

84317959

ROD,M10 x 1.25 x 278mm L

Valve Lift

1шт.
