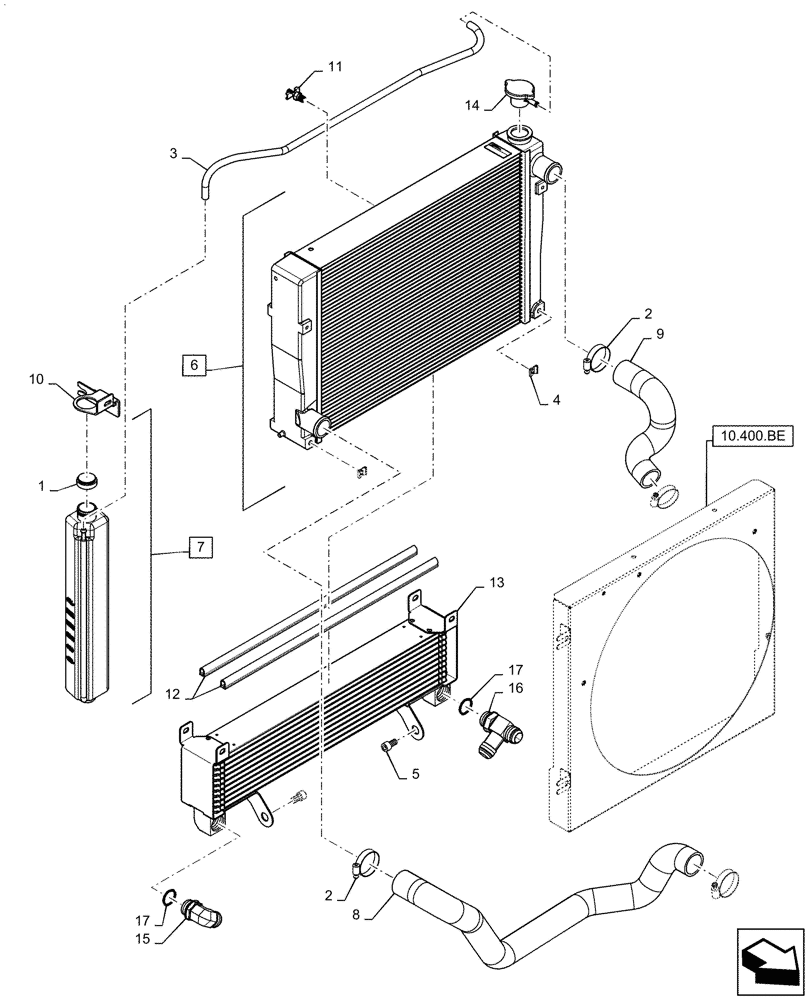

Запчасти Case IH SR210 (10.400.BE) - RADIATOR & COOLER (10) - ENGINE

1

257884A1

CAP

Coolant, Incl In 7

1шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

2.85'

1шт.

4

87700737

CLIP

Pin

2шт.

5

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

6

47362351

RADIATOR

Standard Fin Incl 14

1шт.

7

87020980

BOTTLE,2L

Bottle, Incl 1

1шт.

8

47389930

HOSE,45mm ID, SAE 20R4

Coolant Lower

1шт.

9

47389931

HOSE

Coolant Upper

1шт.

10

47681407

Coolant Bottle

BRACKET

1шт.

11

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

12

84531449

Cooling Module

SEAL

2шт.

13

47532228

Standard Fin

OIL COOLER

1шт.

14

87687375

RADIATOR CAP

Pressure

1шт.

15

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

16

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

17

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.
