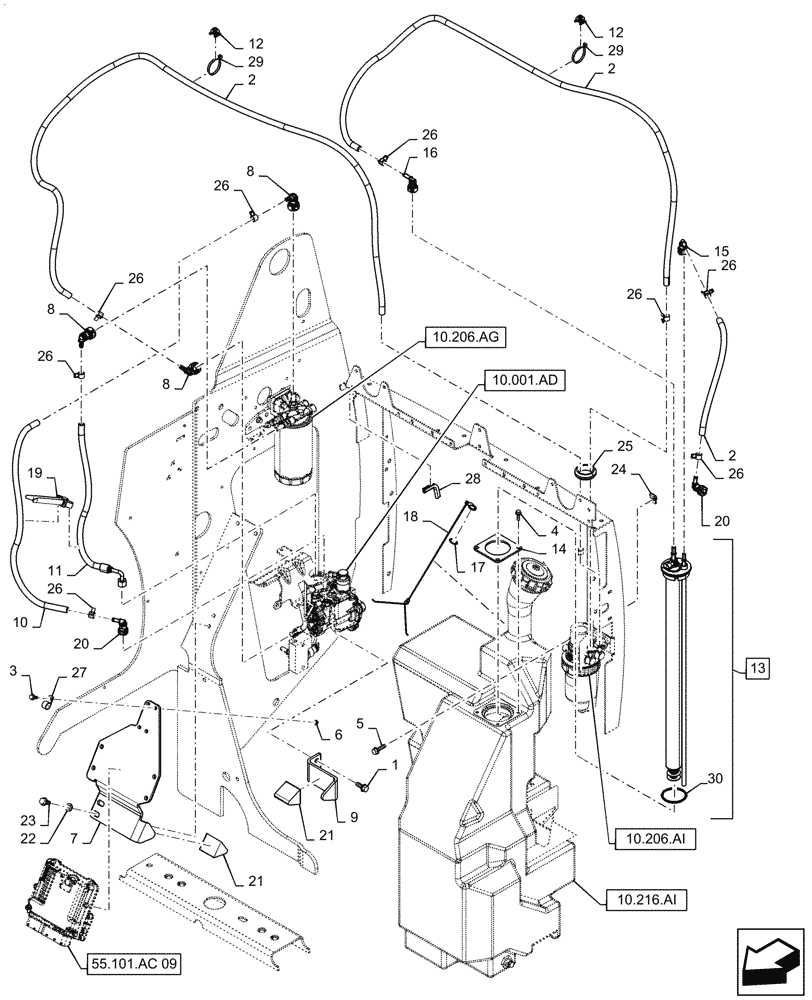

Запчасти Case IH SR210 (10.210.AF) - FUEL LINE & TANK (4-OCT-2013 & AFTER) (10) - ENGINE

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

13.9 FT

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

5

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

7

47369931

BRACKET

ECU

1шт.

8

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

3шт.

9

47710480

Tank Support

BRACKET

1шт.

10

47735688

FUEL HOSE,7.94mm ID x 653mm L, SAE 30R9

1шт.

11

47735689

W/ 90° Fitting

FUEL HOSE,8mm ID x 450mm L, SAE 30R9

1шт.

12

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

4шт.

13

84268571

Fuel, Incl 30

SENDER UNIT

1шт.

Subs to 47747587 with bend

1шт.

14

84338049

MOUNTING PLATE

Sender Retaining

1шт.

15

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

16

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

17

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

1шт.

18

84370069

Fuel Cap

CHAIN

1шт.

19

84386243

CLAMP,489mm L

1шт.

20

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

2шт.

21

84602030

PAD

25.4mm - 30.5mm L, Foam

2шт.

22

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

23

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

24

87037711

SPRING NUT,U, Multi-Thd Sht, M8 x 1.25, PLN

2шт.

25

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

Oil Cooler

1шт.

26

87436932

CLAMP,13.9mm - 15.5mm, Spring

9шт.

27

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

28

87702286

80mm L, Edge Channel

TRIM,Bulk, 1/8" x 30480mm L

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

30

84485157

64.6mm ID x 5.7mm Thk

SEAL

1шт.
