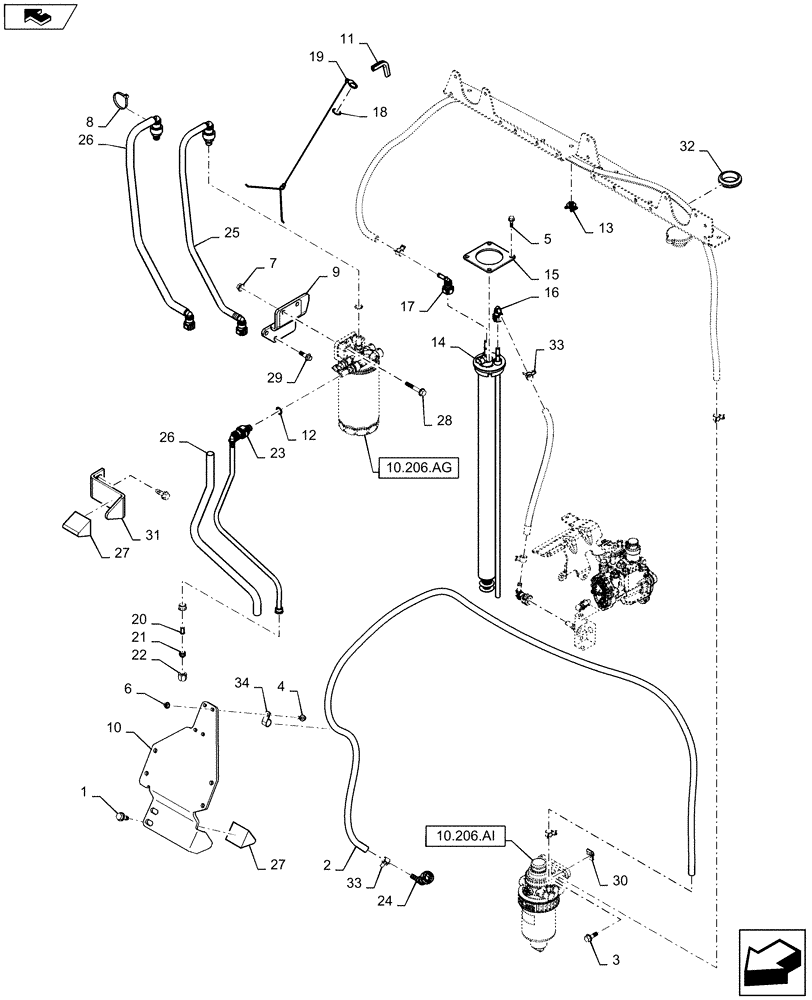

Запчасти Case IH SR210 (10.210.AF) - FUEL LINE & TANK (3-OCT-2013 & PRIOR) (10) - ENGINE

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

13.9'

1шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

9

47739852

Chassis Mounted, Fuel Filter

BRACKET

1шт.

10

47369931

BRACKET

ECU Mounting

1шт.

11

87702286

80mm, Edge Channel

TRIM,Bulk, 1/8" x 30480mm L

1шт.

12

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

Fuel, 11.8mm x 5/16"

1шт.

13

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

14

84268571

Fuel

SENDER UNIT

1шт.

15

84338049

MOUNTING PLATE

Sender

1шт.

16

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

17

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

18

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap

1шт.

19

84370069

Fuel Cap

CHAIN

1шт.

20

84546407

SLEEVE,6.5mm ID x 10mm OD x 15mm L

1шт.

21

84546409

RING,10mm

1шт.

22

84546410

NUT,M16 x 1.5 - 10mm, 15.50mm High

1шт.

23

84546411

Radial

FUEL TUBE

1шт.

24

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

1шт.

25

84557161

FUEL TUBE,12.50mm OD x 405.10mm, W/ Elbow Fittings

1шт.

26

87580074

CONDUIT,Bulk, 12.95mm ID x 17.32mm OD x 15240mm L

45'

1шт.

27

84602030

PAD

Foam

2шт.

28

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

29

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

30

87037711

SPRING NUT,U, Multi-Thd Sht, M8 x 1.25, PLN

2шт.

31

47710480

Tank

BRACKET

1шт.

32

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

Oil Cooler

1шт.

33

87436932

CLAMP,13.9mm - 15.5mm, Spring

6шт.

34

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

15.9mm

1шт.
