Запчасти Case IH SR210 (10.202.AD) - AIR FILTER, LINES, ELECTRONIC CONTROLS (10) - ENGINE

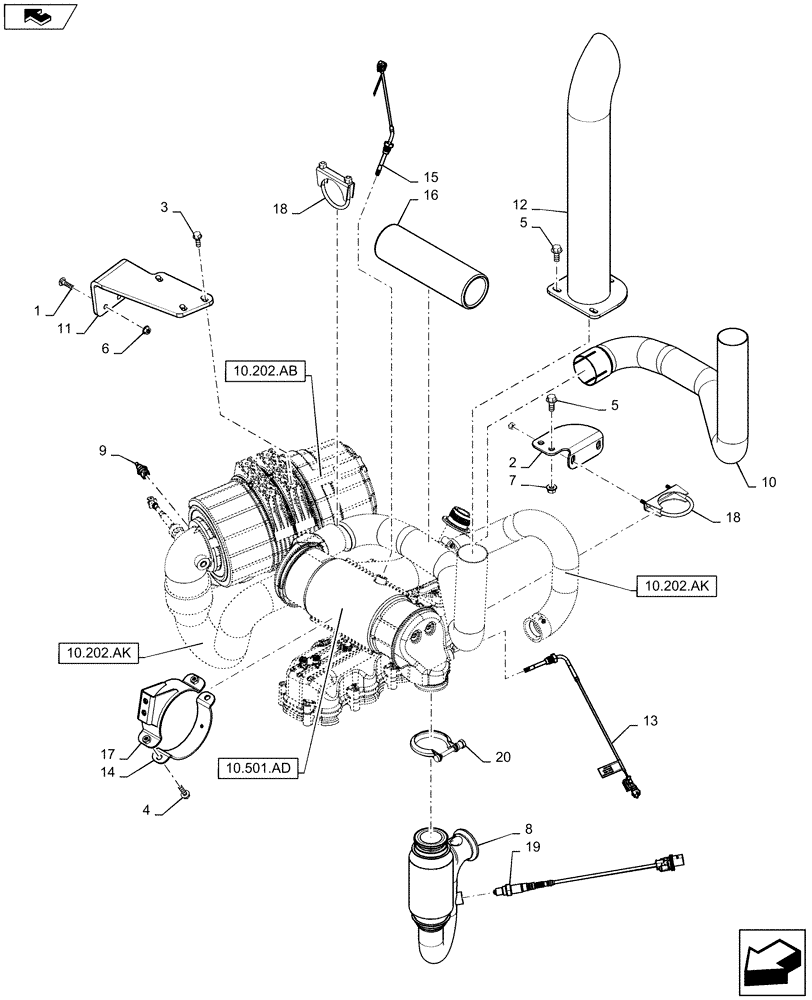

Схема запчастей Case IH SR210 - (10.202.AD) - AIR FILTER, LINES, ELECTRONIC CONTROLS (10) - ENGINE
5
5
11
20
1
7
10.501.ad
18
2
10.202.ak
home
19
15
13
6
10.202.ab
9
3
4
17
10.202.ak
10
14
18
8
12
16

Артикул

Название

Примечание

Количество

1

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

2

84593980

MOUNTING PLATE

Tailpipe Extension Hanger

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

8

84593943

TUBE

Flex, Exhaust System

1шт.

9

84539252

SENSOR

Air Temperature

1шт.

10

47380007

TUBE

Exhaust Tailpipe

1шт.

11

47388339

BRACKET

Air Cleaner Radial

1шт.

12

84495949

EXTENSION

Exhaust Stack

1шт.

13

47406556

TEMPERATURE SENDER

240mm OAL, Years: -29-MAR-17

1шт.

13

47478868

TEMPERATURE SENDER,35mm, Closed

, Start Year: 30-MAR-17

1шт.

14

47428309

Black, Years: -11-AUG-14

COLLAR CLAMP

2шт.

14

47632617

CLAMP

Black, Start Year: 12-AUG-14

2шт.

15

47428730

Temperature, 500mm OAL, Years: -29-MAR-17

SENSOR

1шт.

16

84495805

Wrap, Years: -09-FEB-16

INSULATION,260mm x 335mm

1шт.

17

47430970

Black, Years: -11-AUG-14

CLAMP

2шт.

17

47632616

CLAMP

Black, Start Year: 12-AUG-14

2шт.

18

47541188

CLAMP,68mm ID, Muffler

68mm ID

2шт.

19

84286040

SENSOR

Lambda Ugego, Years: -28-MAY-15

1шт.

20

84409146

PIPE CLAMP,63.5mm - 70mm

Exhaust

2шт.

Выбрано товаров: 23
