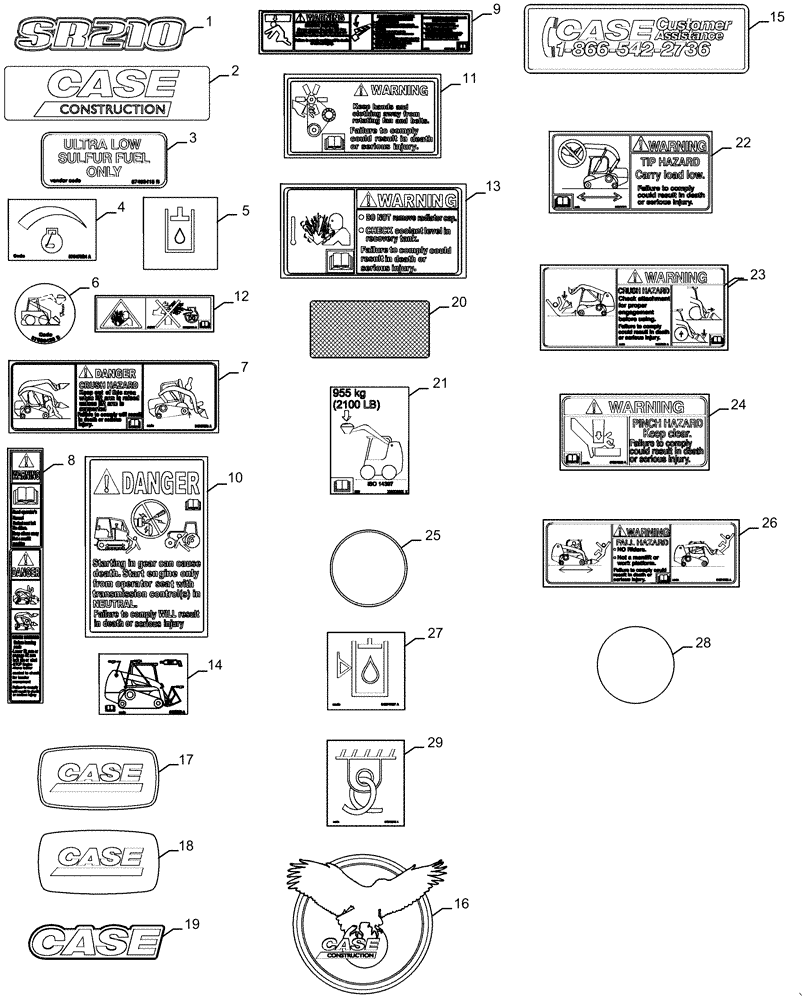

Запчасти Case IH SR210 (90.108.AA[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47465272

SR210, Years: -02-OCT-16

DECAL

2шт.

1

47918484

SR210, Start Year: 03-OCT-16

DECAL

2шт.

2

84385194

DECAL

Case Logo

1шт.

3

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfer

1шт.

4

87647024

DECAL

Throttle

1шт.

5

251752A1

DECAL

Hyd Fluid

1шт.

6

87568435

DECAL

Boom Override

1шт.

7

84367563

DANGER DECAL

Boom Crush Hazard

1шт.

8

84367570

WARNING DECAL

Combination

1шт.

9

84367429

Boom Support

WARNING DECAL

1шт.

10

84135011

DECAL

Engine Start

1шт.

11

9828825

WARNING DECAL

Fan

1шт.

12

84535230

WARNING DECAL

Danger No Either

1шт.

13

84316983

WARNING DECAL

Radiator Cap

1шт.

14

84367585

Lubrication

DECAL

1шт.

15

84311902

Customer Service Care

DECAL

1шт.

16

84468362

DECAL,194mm x 170mm H

Eagle Logo, Years: -02-OCT-16

1шт.

16

47919778

EMBLEM

Eagle Logo, Start Year: 03-OCT-16

1шт.

17

87429186

EMBLEM

Engine

1шт.

18

87415931

DECAL

Filter

1шт.

19

84492069

DECAL,200mm H x 786mm L

200mm, Years: -02-OCT-16

2шт.

19

48005121

DECAL

200mm, Start Year: 03-OCT-16

2шт.

19

84492067

DECAL

120mm

1шт.

No Longer Used as of 03-OCT-2016

1шт.

20

294752A1

REFLECTOR,94mm L X 44mm W

Red

2шт.

21

47481763

Operating Capacity

DECAL

1шт.

22

84367572

WARNING DECAL

Tip Hazard

1шт.

23

84367561

WARNING DECAL

Attachment Test

1шт.

24

84394350

WARNING DECAL

Pinch Hazard

2шт.

25

299274A2

COVER,35mm OD

Lexan, Years: -03-OCT-16

4шт.

26

84374298

WARNING DECAL

No Rider Manlift

1шт.

27

84374297

DECAL

Hyd Oil Level

1шт.

28

84357636

DECAL,53mm OD, Gray

Plug

1шт.

29

84315529

DECAL,64mm L x 71mm W

Tie Down

6шт.
