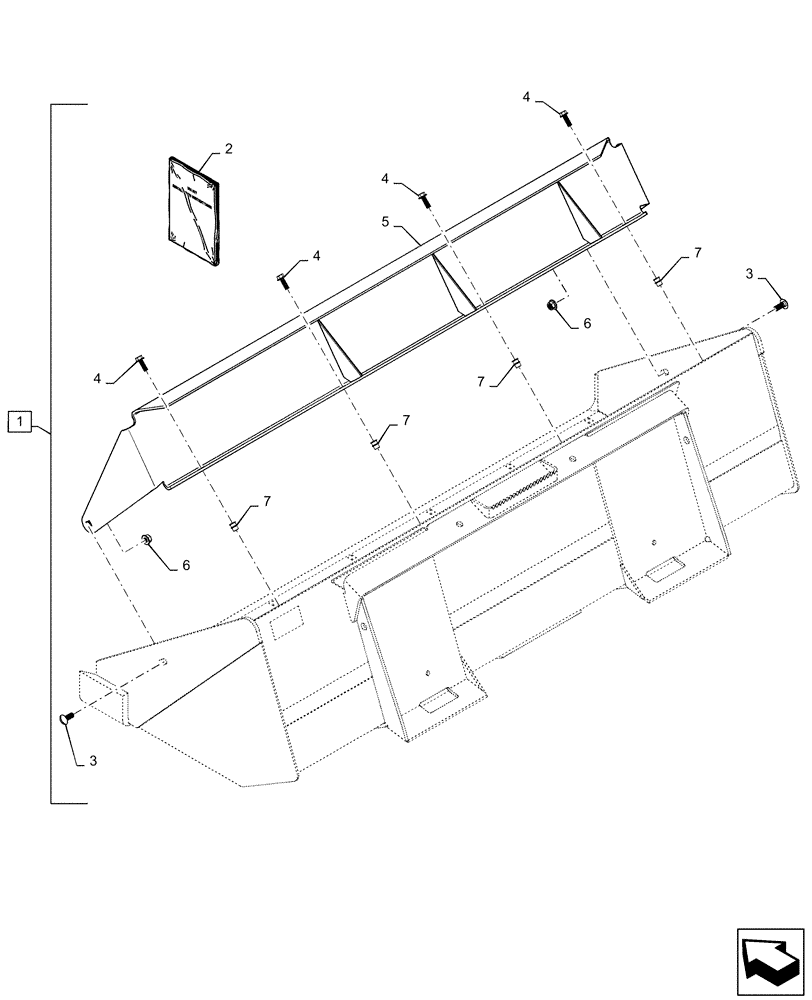

Запчасти Case IH SR210 (82.300.AN[06]) - BUCKET SPILL GUARD, 66" BUCKET (82) - FRONT LOADER & BUCKET

1

84544811

66" Bucket Spill Guard, Gray, Incl 2 - 7

SERVICE KIT

1шт.

2

84544823

Installation

INSTRUCTION

1шт.

3

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

4

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

5

84263253

66" Spill Guard, Gray

EXTENSION

1шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

7

390618A1

INSERT,Knurled Open, M10 x 13.46mm OD

M10, Threaded

4шт.
