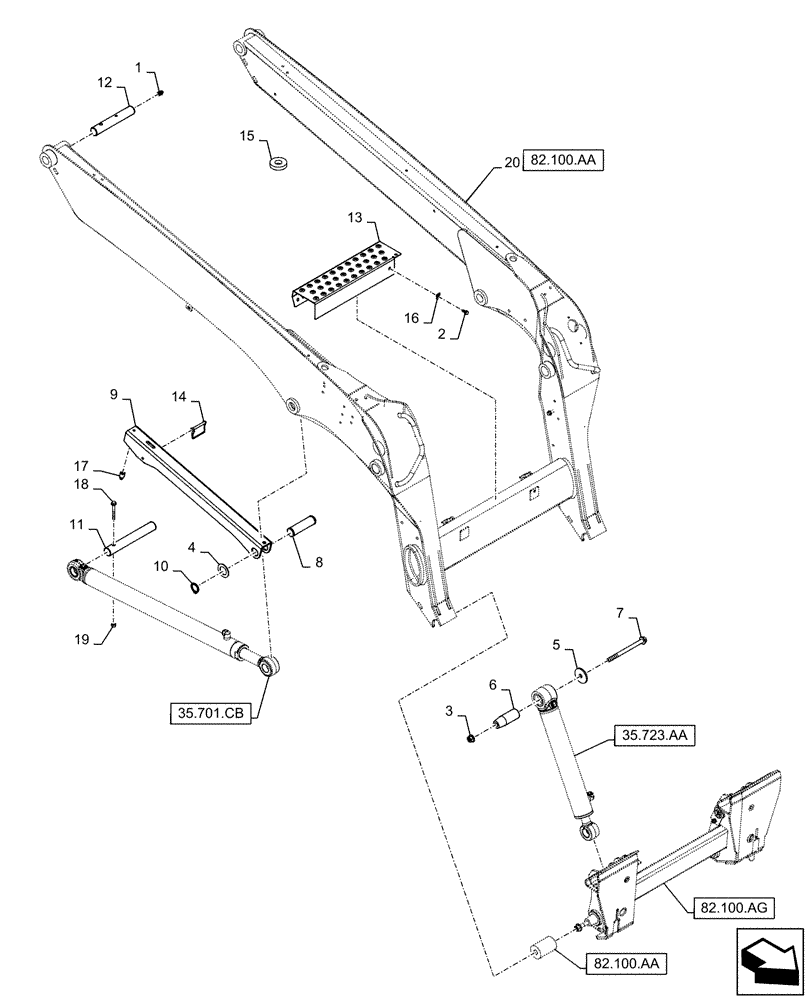

Запчасти Case IH SR210 (82.100.AF) - LOADER ARM (82) - FRONT LOADER & BUCKET

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

4

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

1.531" x 2.5" x 0.109"

40шт.

5

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

17mm x 70mm x 6mm

2шт.

6

47489943

PIN,44.45mm OD x 118.5mm L

Boom To Tip Cylinder

2шт.

7

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

8

84248603

Lift Cylinder

PIN,38.15mm OD x 137.9mm L

2шт.

9

84255103

Channel Safety Red

STRUT

1шт.

10

86632531

SNAP RING,#150, Ext

4шт.

11

84308025

Chassis To Lift Cylinder

PIN,38.15mm OD x 280mm L

2шт.

12

84341462

Boom To Chassis

PIN,38.15mm OD x 233.5mm L

2шт.

13

84377147

Loader, Tan

STEP

1шт.

14

84467349

Snapper

PIN,9.53mm OD x 76.2mm L

1шт.

15

84530035

Rear

MOUNTING PLATE

2шт.

16

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

17

85802403

PLUG,13mm OD

Loader Prop

1шт.

18

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

19

86512554

NUT,M10 x 1.5, Cl 10

4шт.

20

84391755

KIT

Loader Arm Service

1шт.
